RT7257BHZSP - RICHTEK

Description: RICHTEK - RT7257BHZSP - DC-DC Switching Buck Step Down Regulator, Adjustable, 4.5V-15Vin, 800mV-12Vout, 3Aout, SOP-8

Download RT7257BHZSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

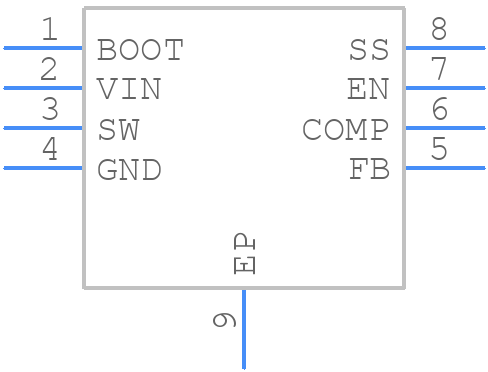

Symbol
RT7257BHZSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT7257BHZSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - RT7257BHZSP
click to zoom
3D Models
RT7257BHZSP - RICHTEK - 3D model - Small Outline Packages - RT7257BHZSP
click to zoom

RT7257BHZSP Details

  • Manufacturer Part Number:

    RT7257BHZSP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PSOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-G8

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1400 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

RT7257BHZSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the switching node (SW) away from sensitive analog nodes, and use a thermal relief pattern under the IC to improve heat dissipation.
  • Use a high-precision voltage reference, such as a 0.5% or better resistor divider network, and ensure the feedback resistors are 1% or better. Additionally, minimize noise and ripple on the output voltage by using a low-ESR output capacitor.
  • A low-ESR, X5R or X7R ceramic capacitor with a value of 4.7uF to 10uF is recommended. This helps to filter input noise and reduce voltage ripple.
  • Ensure the output capacitor is properly sized and has a low ESR. Add a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor to improve stability. Also, minimize the distance between the output capacitor and the IC.
  • The RT7257BHZSP is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 70°C to ensure a sufficient margin for thermal derating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT7257BHZSP Overview

Use the download button to access the RT7257BHZSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT725, or try a keyword search, such as Switching Regulator or Controllers
