RT7258GQW - RICHTEK

Description: IC REG BUCK ADJUSTABLE 8A 14WDFN

Download RT7258GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

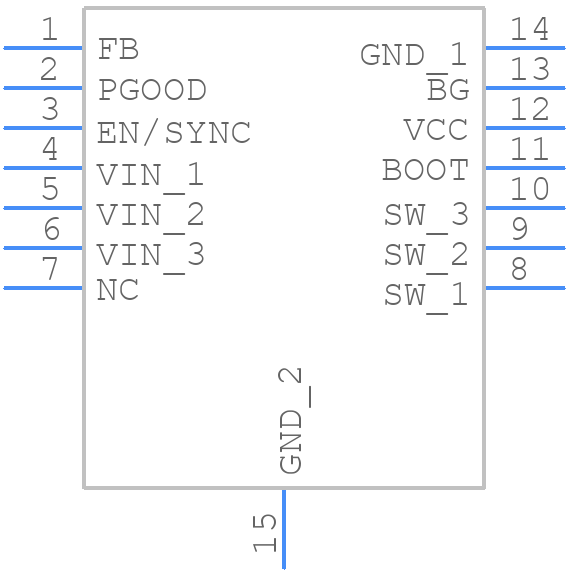

RT7258GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT7258GQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN-14L 4x3
click to zoom
3D Models
RT7258GQW - RICHTEK - 3D model - Small Outline No-lead - WDFN-14L 4x3
click to zoom

RT7258GQW Details

  • Manufacturer Part Number:

    RT7258GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN4x3-14

  • Manufacturer Package Code:

    WDFN4x3-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-N14

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC14,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

RT7258GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT7258GQW's thermal pad should be connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less. Additionally, the input capacitor should be at least 10uF with an ESR of 1ohm or less.
  • The maximum input voltage that can be applied to the RT7258GQW is 28V. Exceeding this voltage may cause damage to the device.
  • The RT7258GQW has a built-in overcurrent protection (OCP) feature that limits the output current to 3.5A. However, it is still recommended to add external overcurrent protection, such as a fuse or a current-sensing resistor, to prevent damage to the device and surrounding components.
  • The recommended operating temperature range for the RT7258GQW is -40°C to 125°C. Operating the device outside of this range may affect its performance and reliability.
