A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component side of the PCB clear of copper to minimize thermal resistance.
Use a high-quality input capacitor (e.g., X5R or X7R) with a capacitance value of at least 10uF, and ensure the input voltage is within the recommended range (4.5V to 18V).
The maximum output current is 3A, but it's recommended to derate the output current to 2.5A for optimal reliability and thermal performance.
Use an external OCP circuit with a sense resistor (e.g., 0.1 ohm) and a comparator (e.g., LM339) to detect overcurrent conditions and shut down the regulator.
Use a low-ESR capacitor (e.g., ceramic or film capacitor) with a value of at least 10uF and a voltage rating of 25V or higher.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT7258GSP Overview

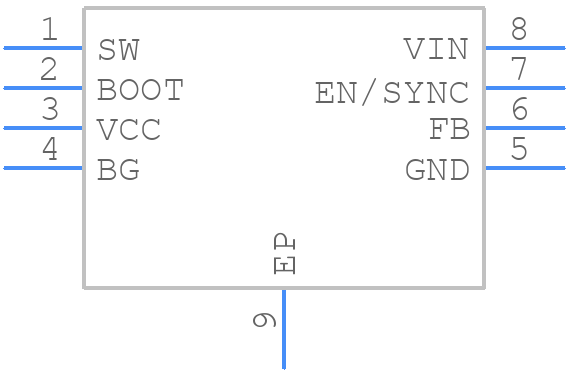

Use the download button to access the RT7258GSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT725,
or try a keyword search, such as Switching Regulator or Controllers
