RT7259GQW - RICHTEK

Description: IC REG BUCK ADJ 10A 14WDFN

Download RT7259GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

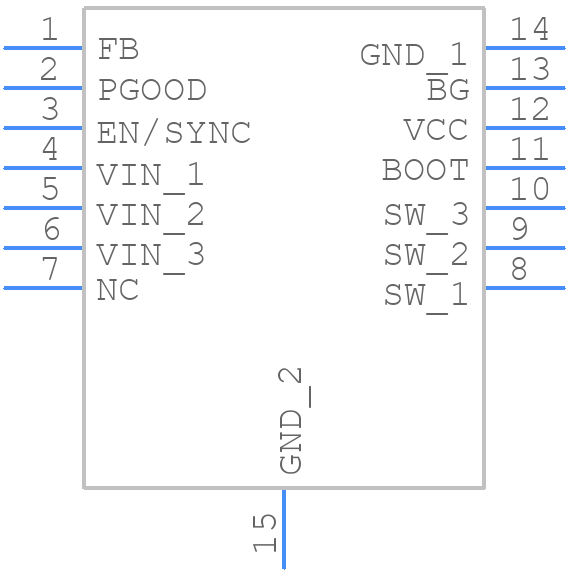

Symbol
RT7259GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT7259GQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN-14L 4x3
click to zoom
3D Models
RT7259GQW - RICHTEK - 3D model - Small Outline No-lead - WDFN-14L 4x3
click to zoom

RT7259GQW Details

  • Manufacturer Part Number:

    RT7259GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN4x3-14

  • Manufacturer Package Code:

    WDFN4x3-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-N14

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC14,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    600 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

RT7259GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT7259GQW's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less, and to place the output capacitor close to the RT7259GQW.
  • The maximum input voltage that can be applied to the RT7259GQW is 28V, but it is recommended to operate within the specified input voltage range of 7V to 25V for optimal performance and reliability.
  • The RT7259GQW has a built-in overcurrent protection (OCP) feature that limits the output current to 2.5A. Additionally, it is recommended to add external overcurrent protection devices, such as fuses or PTC thermistors, to protect the device from excessive current.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor, placed close to the RT7259GQW's input pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT7259GQW Overview

Use the download button to access the RT7259GQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT725, or try a keyword search, such as Switching Regulator or Controllers
