RT7273GQW - RICHTEK

Description: Buck Switching Regulator IC Positive Adjustable 0.8V 3 Output 3A, 2A 40-WFQFN Exposed Pad

Download RT7273GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

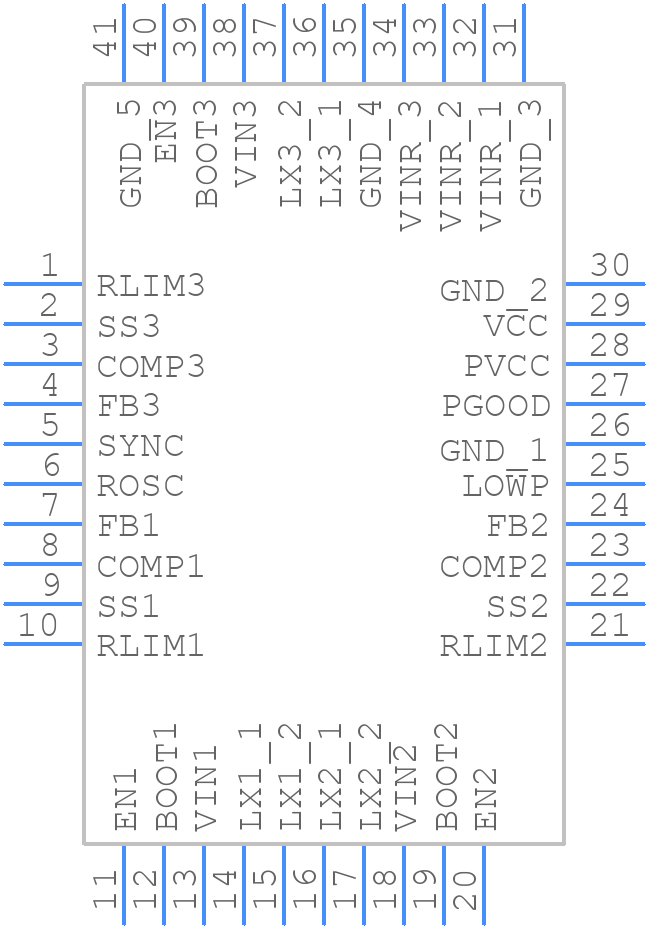

RT7273GQW - RICHTEK PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-WQFN (6x6)
click to zoom
3D Models
RT7273GQW - RICHTEK  - 3D model - Quad Flat No-Lead - 40-WQFN (6x6)
click to zoom

RT7273GQW Details

  • Manufacturer Part Number:

    RT7273GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WQFN6x6-40

  • Manufacturer Package Code:

    WQFN6x6-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    S-PQCC-N40

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

RT7273GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT7273GQW's thermal pad should be connected to the ground plane using multiple thermal vias to ensure efficient heat dissipation.
  • To ensure stable and accurate output voltage, it is essential to use a high-quality output capacitor with low ESR and a sufficient capacitance value (e.g., 10uF). Additionally, the input voltage should be well-regulated, and the output voltage should be decoupled with a capacitor (e.g., 1uF) to filter out noise.
  • Although the datasheet specifies a maximum input voltage of 18V, it is recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
  • To protect the RT7273GQW from overcurrent and short-circuit conditions, it is recommended to add an external current-sensing resistor (e.g., 0.1 ohm) and a fuse (e.g., 1A) in series with the input voltage. Additionally, a short-circuit protection circuit can be implemented using a comparator and a MOSFET.
  • A high-quality, low-ESR input capacitor (e.g., 10uF, X5R or X7R dielectric) is recommended to filter out input noise and ensure stable operation. The capacitor value should be selected based on the input voltage ripple requirement and the device's input capacitance requirement.
