RT7274GSP - RICHTEK

Description: IC REG BUCK ADJUSTABLE 2A 8SOP

Download RT7274GSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

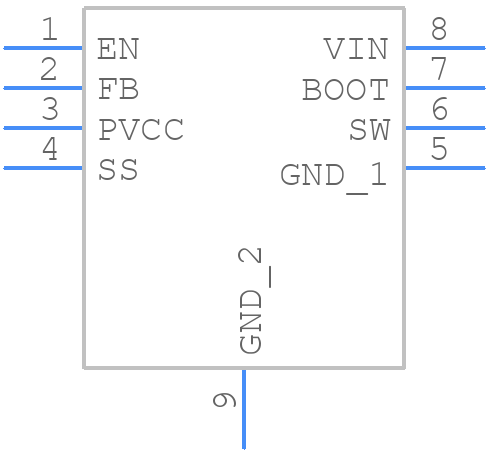

RT7274GSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT7274GSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (Exposed Pad) Plastic Package_
click to zoom
3D Models
RT7274GSP - RICHTEK - 3D model - Small Outline Packages - 8-Lead SOP (Exposed Pad) Plastic Package_
click to zoom

RT7274GSP Details

  • Manufacturer Part Number:

    RT7274GSP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PSOP-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    CONSTANT ON TIME

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    8 V

  • Output Voltage-Min:

    0.765 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.753 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    700 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

RT7274GSP Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note ANI27, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • To optimize output voltage accuracy, ensure that the input voltage is within the recommended range, use a high-precision voltage reference, and minimize noise on the VREF pin. Additionally, consider using a voltage margining feature to adjust the output voltage.
  • The RT7274GSP can drive a maximum capacitive load of 10uF. However, it's recommended to use a smaller capacitor value to ensure stability and prevent oscillations.
  • The RT7274GSP has a built-in OCP feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The OCP threshold can be adjusted by changing the value of the resistor and capacitor.
  • Richtek recommends using a 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric as the input capacitor. This ensures low ESR and high ripple current capability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT7274GSP Overview

Use the download button to access the RT7274GSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT727, or try a keyword search, such as Switching Regulator or Controllers
