RT7285CGJ6 - RICHTEK

Description: Switching Voltage Regulators 1.5A, 18V, 500kHz ACOT Synchronous Step-Down Converter

Download RT7285CGJ6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

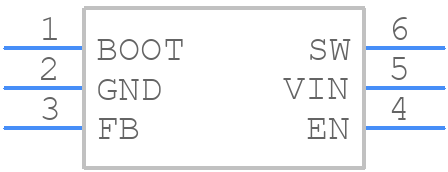

RT7285CGJ6 - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT7285CGJ6 - RICHTEK PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOT-23-6 (FC)
