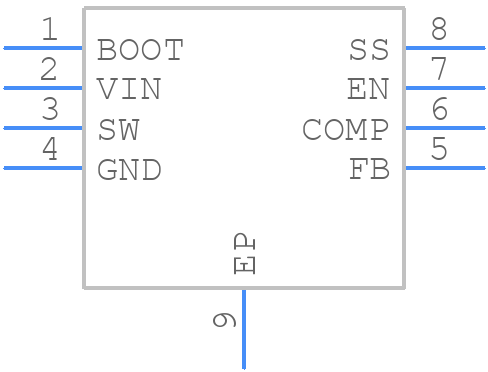

RT7297CHZSP - RICHTEK

RT7297CHZSP Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Richtek provides a recommended PCB layout in their application note ANI-45, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
• How do I select the correct output capacitor for the RT7297CHZSP?
  The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Richtek recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. A X5R or X7R dielectric capacitor is recommended for optimal performance.
• What is the maximum input voltage that the RT7297CHZSP can withstand without damage?
  Although the datasheet specifies a maximum input voltage of 18V, Richtek recommends limiting the input voltage to 15V to ensure reliable operation and prevent damage to the internal components.
• How do I implement overcurrent protection with the RT7297CHZSP?
  The RT7297CHZSP has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and GND. The value of the resistor determines the overcurrent threshold. Richtek provides a calculation formula for selecting the correct resistor value in their application note ANI-45.
• What is the recommended input capacitor value and type for the RT7297CHZSP?
  Richtek recommends using a 10uF to 22uF input capacitor with a voltage rating of at least 25V. A X5R or X7R dielectric capacitor is recommended for optimal performance. The input capacitor should be placed as close as possible to the VIN pin to minimize noise and ripple.
