RT8016-GQW - RICHTEK

Description: 1.5MHz, 1A, High Efficiency PWM Step-Down DC/DC Converter

Download RT8016-GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

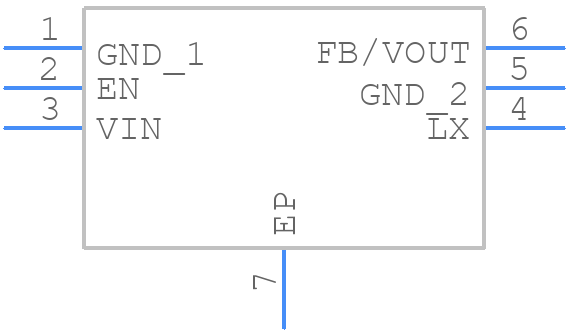

RT8016-GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8016-GQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - W-Type 6L DFN 2x2 Package
click to zoom
3D Models
RT8016-GQW - RICHTEK - 3D model - Small Outline No-lead - W-Type 6L DFN 2x2 Package
click to zoom

RT8016-GQW Details

  • Manufacturer Part Number:

    RT8016-GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    SON, SOLCC6,.08,25

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • JESD-30 Code:

    R-PDSO-N6

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1800 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL
