- Part Number RT8020AGQW
- Manufacturer RICHTEK
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - RT8073GQW
- Released Date Aug 23, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RT8020AGQW Details
-
Manufacturer Part Number:
RT8020AGQW
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
WDFN-12
-
Pin Count:
12
-
Manufacturer Package Code:
12WDFN
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Richtek Technology Corp
-
YTEOL:
0
RT8020AGQW Frequently Asked Questions (FAQs)
-
Richtek provides a recommended PCB layout in their application note ANI03, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
-
To ensure stable output voltage, it's essential to follow the recommended input capacitor selection, output capacitor selection, and feedback network design guidelines provided in the datasheet. Additionally, consider using a voltage supervisor or a power-on reset circuit to monitor the output voltage and prevent brownout conditions.
-
The maximum allowable ripple current for the input capacitors depends on the specific capacitor type and rating. As a general guideline, Richtek recommends using capacitors with a ripple current rating of at least 1A to ensure reliable operation. Consult the capacitor manufacturer's datasheet for specific ratings and guidelines.
-
The RT8020AGQW is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. Consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature. Consult Richtek's application notes and thermal management guidelines for more information.
-
To troubleshoot output voltage regulation issues, follow a systematic approach: 1) Verify the input voltage and current, 2) Check the output voltage and current, 3) Verify the feedback network and voltage divider resistors, 4) Check for thermal issues or overheating, and 5) Consult the datasheet and application notes for guidance on specific troubleshooting steps.
Trust Checks
Community Provided
System Verified
Community Approved
RT8020AGQW Overview

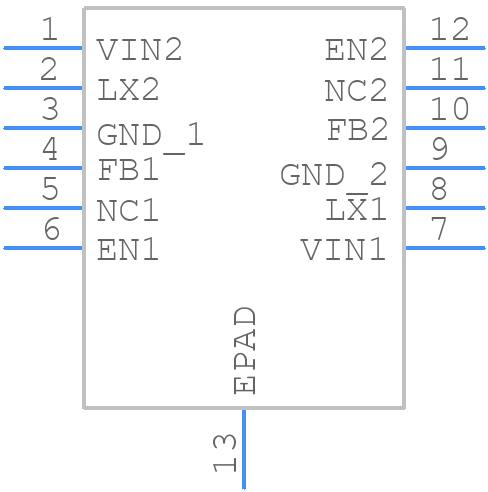

Use the download button to access the RT8020AGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT802,
or try a keyword search, such as Switching Regulator or Controllers
