Richtek provides a recommended PCB layout in their application note ANI03, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The output capacitor selection depends on the output voltage, output current, and ripple requirements. Richtek recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 1.5 times the output voltage. Additionally, the capacitor's ripple current rating should be greater than the maximum output current.
The maximum junction temperature (Tj) for the RT8020CGQW is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable long-term operation.
While the RT8020CGQW can operate up to 150°C, it's not recommended for use in high-temperature environments above 85°C without proper heat sinking and thermal management. Consult Richtek's application notes and thermal design guidelines for high-temperature applications.
To ensure stability, follow Richtek's recommended PCB layout, use a low-ESR output capacitor, and add a 1uF to 10uF ceramic capacitor between the VIN pin and GND pin. Additionally, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT8020CGQW Overview

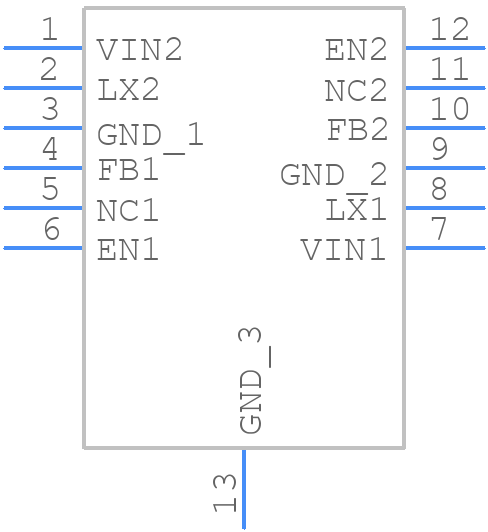

Use the download button to access the RT8020CGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT802,
or try a keyword search, such as Switching Regulator or Controllers
