RT8020GQW - RICHTEK

Description:  2.5V to 5.5V Input Range  Adjustable Output From 0.6V to VIN  1.2V, 1.3V, 1.8V, 2.5V and 3.3V Fixed/ Adjustable Output Voltage  1A Output Current  95% Efficiency  No Schottky Diode Required  50μA Quiescent Current per Channel  1.5MHz Fixed Frequency PWM Operation  Small 12-Lead WDFN Package  RoHS Compliant and 100% Lead (Pb)-Free

Download RT8020GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

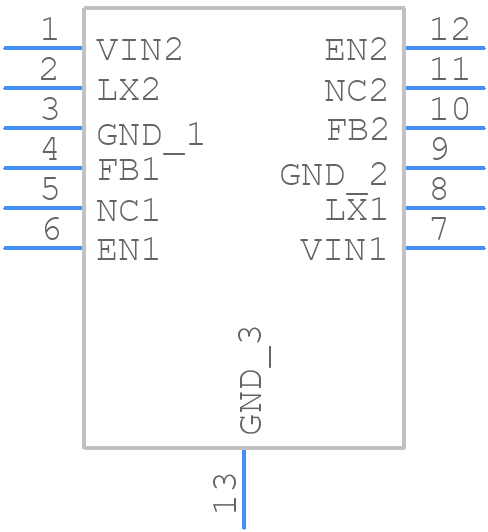

Symbol
RT8020GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8020GQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - RT8073GQW
click to zoom
3D Models
RT8020GQW - RICHTEK - 3D model - Small Outline No-lead - RT8073GQW
click to zoom

RT8020GQW Details

  • Manufacturer Part Number:

    RT8020GQW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    WDFN3x3-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    WDFN3x3-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Additional Feature:

    ADJUSTABLE OUTPUT MODE FROM 0.6 TO 5.5

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    1800 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    3 mm

RT8020GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT8020GQW's thermal pad should be connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it is essential to follow the recommended component values and PCB layout guidelines. Additionally, a minimum output capacitance of 10uF is recommended, and the output voltage should be monitored to prevent over-voltage or under-voltage conditions.
  • The RT8020GQW can handle a maximum input voltage of 18V, but it is recommended to operate within the specified input voltage range of 7V to 15V for optimal performance and reliability.
  • The output voltage of the RT8020GQW can be adjusted by using a resistive divider network between the output and the FB pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The RT8020GQW can deliver a maximum output current of 2A, but it is recommended to operate within the specified output current range of 0.5A to 1.5A for optimal performance and reliability.
