RT8058AGQW - RICHTEK

Description: IC REG BUCK ADJUSTABLE 2A 10WDFN

Download RT8058AGQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

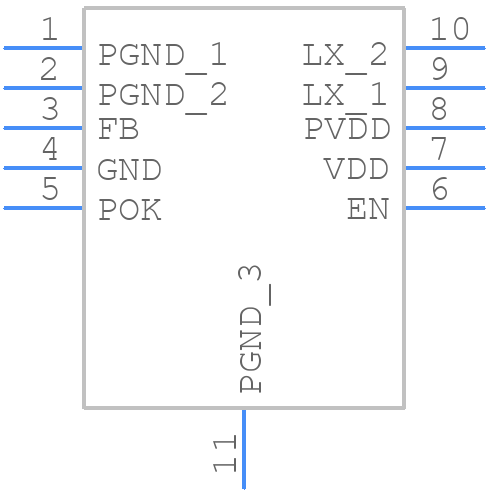

RT8058AGQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8058AGQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - RT6150AGQW-1
click to zoom
3D Models
RT8058AGQW - RICHTEK - 3D model - Small Outline No-lead - RT6150AGQW-1
click to zoom

RT8058AGQW Details

  • Manufacturer Part Number:

    RT8058AGQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    WDFN-10

  • Package Description:

    WDFN-10

  • Manufacturer Package Code:

    10WDFN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.6 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

RT8058AGQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT8058AGQW's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less, and to place the output capacitor close to the RT8058AGQW.
  • The maximum input voltage that can be applied to the RT8058AGQW is 18V, but it is recommended to operate within the specified input voltage range of 6.5V to 15V for optimal performance and reliability.
  • The RT8058AGQW has a built-in overcurrent protection (OCP) feature that limits the output current to 2.5A. Additionally, it is recommended to add external overcurrent protection devices, such as fuses or PTC resistors, to protect the device from excessive current.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor, placed close to the RT8058AGQW's input pins.
