A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT8064ZSP's thermal pad should be connected to the ground plane using multiple thermal vias to ensure efficient heat dissipation.
To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less. Additionally, the input capacitor should be placed as close to the VIN pin as possible.
The maximum input voltage that can be applied to the RT8064ZSP is 18V. Exceeding this voltage may cause damage to the device.
The output voltage of the RT8064ZSP can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
The maximum output current that the RT8064ZSP can deliver is 3A. Exceeding this current may cause overheating or damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT8064ZSP Overview

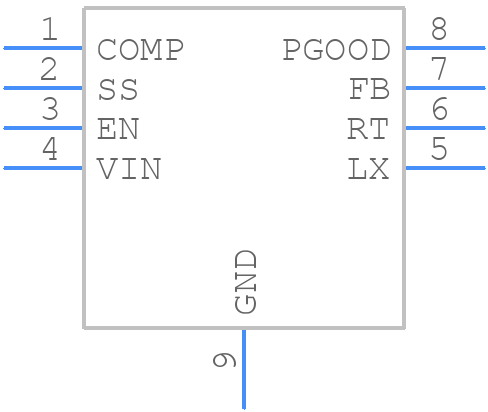

Use the download button to access the RT8064ZSP schematic symbol, PCB footprint, and 3D model.
