RT8065ZQW - RICHTEK

Description: RICHTEK - RT8065ZQW - DC-DC Switching Buck Step Down Regulator, Adjustable, 2.7V-5.5Vin, 800mV-5Vout, 3Aout, WDFN-8

Download RT8065ZQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

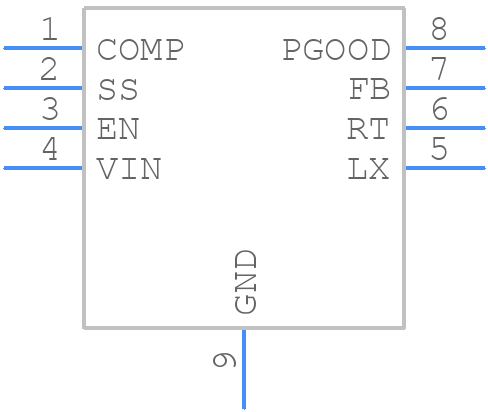

RT8065ZQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8065ZQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN-8L 3x3
click to zoom
3D Models
RT8065ZQW - RICHTEK - 3D model - Small Outline No-lead - WDFN-8L 3x3
click to zoom

RT8065ZQW Details

  • Manufacturer Part Number:

    RT8065ZQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN3x3-8

  • Package Description:

    WDFN-8

  • Manufacturer Package Code:

    WDFN3x3-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm
