RT8065ZSP - RICHTEK

Description: IC REG BUCK ADJUSTABLE 3A 8SOP

Download RT8065ZSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

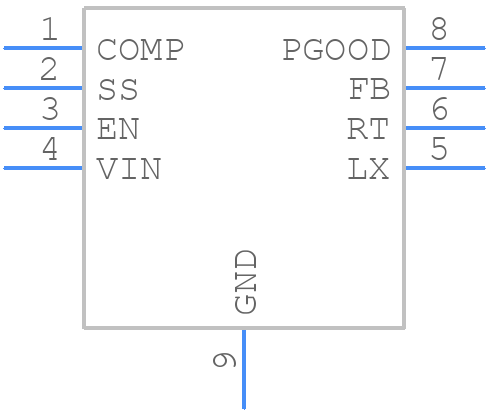

RT8065ZSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8065ZSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (Exposed Pad) Plastic Package
click to zoom
3D Models
RT8065ZSP - RICHTEK - 3D model - Small Outline Packages - 8-Lead SOP (Exposed Pad) Plastic Package
click to zoom

RT8065ZSP Details

  • Manufacturer Part Number:

    RT8065ZSP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PSOP-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9025 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.753 mm

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.905 mm

RT8065ZSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT8065ZSP's thermal pad should be connected to the ground plane using multiple thermal vias.
  • Ensure that the input voltage is within the recommended range, and that the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic). Also, ensure that the feedback network is properly designed and connected.
  • The maximum safe operating junction temperature is 150°C. Exceeding this temperature may reduce the device's lifespan or cause permanent damage.
  • Yes, the RT8065ZSP is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to ensure compliance with specific industry standards.
  • Use an oscilloscope to monitor the output voltage and input voltage. Check for proper PCB layout, component selection, and thermal design. Consult the datasheet and application notes for troubleshooting guidelines.
