A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT8075ZQW should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic). Also, minimize the distance between the RT8075ZQW and the output capacitor.
The maximum safe operating junction temperature is 150°C. Exceeding this temperature may reduce the lifespan of the device or cause permanent damage.
Yes, the RT8075ZQW is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, additional testing and validation may be required to ensure compliance with specific industry standards.
Check the input voltage, output capacitor value, and PCB layout. Verify that the device is properly soldered and that there are no signs of physical damage. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT8075ZQW Overview

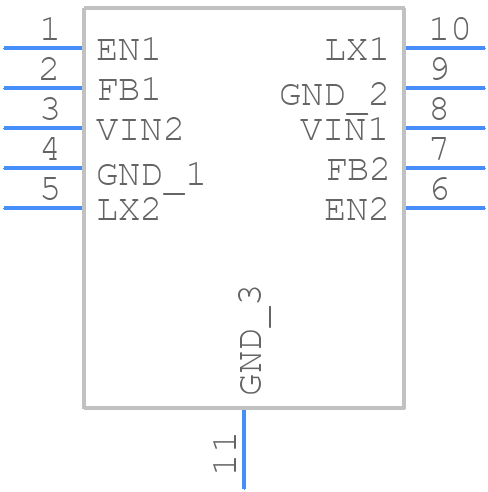

Use the download button to access the RT8075ZQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT807,
or try a keyword search, such as Switching Regulator or Controllers
