RT8092JCWSC - RICHTEK

Description: RICHTEK - RT8092JCWSC - DC/DC CONV, SYNC BUCK, 1.8/1.2V, WLCSP15

Download RT8092JCWSC Model

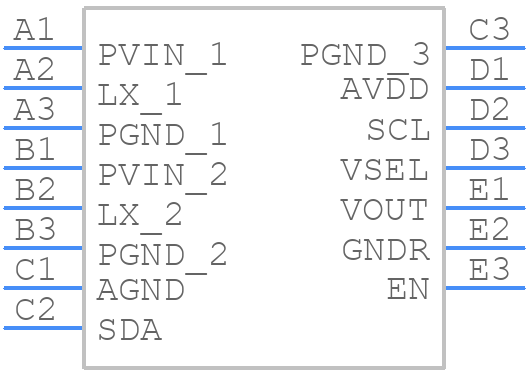

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT8092JCWSC - RICHTEK PCB footprint - BGA - BGA - 15B WL-CSP 1.2x2 Package (BSC)
click to zoom
3D Models
RT8092JCWSC - RICHTEK  - 3D model - BGA - 15B WL-CSP 1.2x2 Package (BSC)
click to zoom

RT8092JCWSC Details

  • Manufacturer Part Number:

    RT8092JCWSC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WL-CSP1.2x2-15

  • Manufacturer Package Code:

    WL-CSP1.2x2-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    8

  • Additional Feature:

    ALSO HAS PFM CONTROL TECHNIQUE; ALSO OPERATES IN ADJUSTABLE MODE FROM 0.3 TO 5.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B15

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    1.2 mm

RT8092JCWSC Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT8092JCWSC should be placed near a thermal pad or a heat sink to ensure good heat dissipation.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the RT8092JCWSC. Additionally, a 1uF ceramic capacitor should be placed between the VIN and GND pins to filter out noise.
  • The RT8092JCWSC can handle a maximum input voltage of 18V, but it is recommended to operate within the specified input voltage range of 7V to 15V for optimal performance and reliability.
  • The output voltage of the RT8092JCWSC can be adjusted by connecting a resistor divider network between the VOUT and GND pins. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1 + R2) / R2.
  • The RT8092JCWSC can provide a maximum output current of 2A, but it is recommended to operate within the specified output current range of 0.5A to 1.5A for optimal performance and reliability.
