RT8125DGQW - RICHTEK

Description: Buck Regulator Positive Output Step-Down DC-DC Controller IC 10-WDFN (3x3)

Download RT8125DGQW Model
Schematic

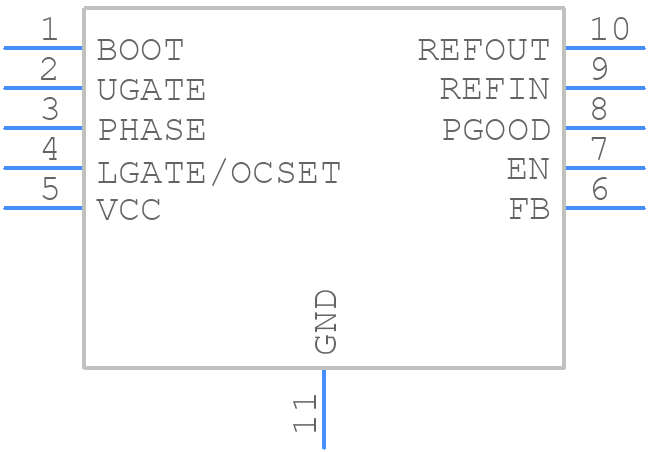

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT8125DGQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead DFN 3mm x 3mm
click to zoom
3D Models
RT8125DGQW - RICHTEK  - 3D model - Small Outline No-lead - 10-Lead DFN 3mm x 3mm
click to zoom

RT8125DGQW Details

  • Manufacturer Part Number:

    RT8125DGQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WDFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    330 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

RT8125DGQW Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note ANI06, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure stable output voltage, it's essential to follow the recommended input capacitor selection, output capacitor selection, and feedback network design guidelines provided in the datasheet. Additionally, consider using a voltage supervisor or a power-on reset circuit to monitor the output voltage and prevent brownout conditions.
  • The maximum allowable ripple current for the input capacitors depends on the specific capacitor type and rating. As a general guideline, Richtek recommends using capacitors with a ripple current rating of at least 1A to ensure reliable operation. Consult the capacitor manufacturer's datasheet for specific ratings and guidelines.
  • The RT8125DGQW is rated for operation up to 125°C, but it's essential to consider the thermal derating curves provided in the datasheet to ensure reliable operation. Additionally, consider using thermal interface materials and heat sinks to minimize thermal resistance and prevent overheating.
  • To troubleshoot output voltage errors or instability issues, follow a systematic approach: 1) Verify the input voltage and current, 2) Check the output voltage and current, 3) Verify the feedback network and compensation components, 4) Check for thermal issues, and 5) Consult the datasheet and application notes for guidance on specific troubleshooting steps.
