A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The input and output capacitors should be placed close to the IC, and the feedback resistors should be placed close to the output pin.
To ensure stability, the output capacitor should be a low-ESR type, and the feedback resistors should be chosen to ensure a stable gain margin. Additionally, the input and output capacitors should be decoupled from the power plane.
The maximum input voltage that the RT8202AGQW can handle is 28V, but it's recommended to keep the input voltage below 24V for optimal performance and reliability.
The output voltage of the RT8202AGQW can be calculated using the formula: Vout = Vref x (1 + R2/R1), where Vref is the internal reference voltage (2.5V), R2 is the feedback resistor, and R1 is the divider resistor.
The thermal shutdown temperature of the RT8202AGQW is typically around 150°C, but it can vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT8202AGQW Overview

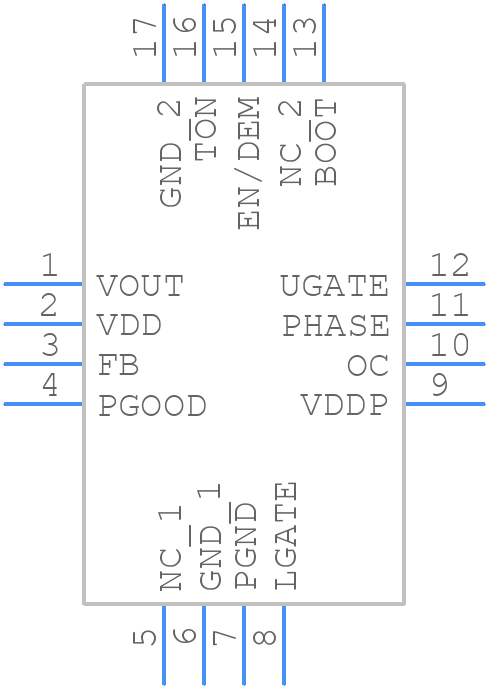

Use the download button to access the RT8202AGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT820,
or try a keyword search, such as Switching Regulator or Controllers
