- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RT8206BGQW
- Part Number RT8206BGQW
- Manufacturer RICHTEK
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - qfn-32
- Released Date Oct 31, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RT8206BGQW Details
-
Manufacturer Part Number:
RT8206BGQW
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Part Package Code:
WQFN-32
-
Manufacturer Package Code:
32WQFN
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Richtek Technology Corp
-
YTEOL:
0
RT8206BGQW Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The input and output capacitors should be placed close to the IC, and the feedback resistors should be placed close to the FB pin.
-
To ensure stability, the output capacitor should be a low-ESR type, and the feedback resistors should be chosen to ensure a stable gain margin. Additionally, the PCB layout should be designed to minimize parasitic inductance and capacitance.
-
The RT8206BGQW can handle input voltages up to 32V, but it's recommended to keep the input voltage below 28V to ensure reliable operation.
-
The RT8206BGQW is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. It's recommended to use a heat sink or thermal pad to ensure reliable operation in high-temperature environments.
-
The output voltage of the RT8206BGQW can be calculated using the formula: Vout = Vref x (1 + R2/R1), where Vref is the internal reference voltage (1.25V), R2 is the feedback resistor, and R1 is the divider resistor.
Trust Checks
Community Provided
System Verified
Community Approved
RT8206BGQW Overview

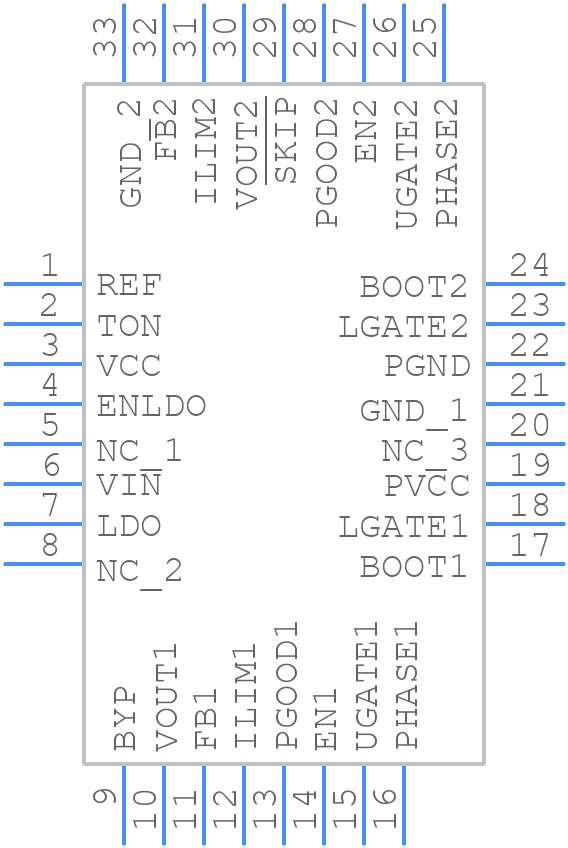

Use the download button to access the RT8206BGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT820,
or try a keyword search, such as Switching Regulator or Controllers
