RT8207MZQW - RICHTEK

Description: Switching Controllers Complete DDRII/DDRIII/Low-Power DDRIII/DDRIV Memory Power Supply Controller

Download RT8207MZQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

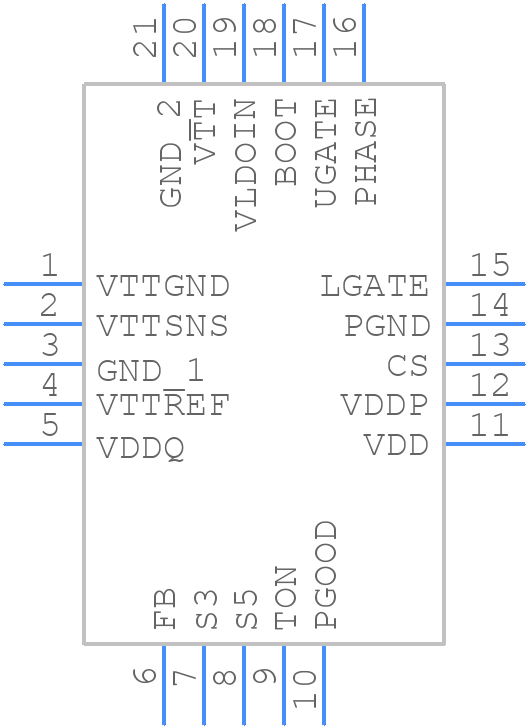

Symbol
RT8207MZQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8207MZQW - RICHTEK PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - WQFN-20L 3x3
click to zoom
3D Models
RT8207MZQW - RICHTEK - 3D model - Quad Flat No-Lead - WQFN-20L 3x3
click to zoom

RT8207MZQW Details

  • Manufacturer Part Number:

    RT8207MZQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    S-PQCC-N20

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC20,.11SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

RT8207MZQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short and wide traces for the power lines.
  • To ensure stability, use a minimum output capacitance of 22uF, and ensure that the ESR (Equivalent Series Resistance) of the capacitor is less than 1 ohm. Also, add a 10nF ceramic capacitor in parallel with the output capacitor to improve stability.
  • The RT8207MZQW can handle a maximum input voltage of 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
  • The output voltage of the RT8207MZQW can be calculated using the formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
  • The RT8207MZQW can deliver a maximum output current of 2A, but it's recommended to keep the output current below 1.5A for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT8207MZQW Overview

Use the download button to access the RT8207MZQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT820, or try a keyword search, such as Switching Regulator or Controllers
