Description:Features
PWM Controller
Adjustable Current Limit with Low-Side RDS(ON)
Sensing
Low Quiescent Supply Current
Quick Load-Step Response within 100ns
1% VVDDQ Accuracy Over Line and Load
Adjustable 0.675V to 3.3V Output Range for 1.8V
(DDR2), 1.5V (DDR3), 1.35V (DDR3L), 1.2V (LPDDR3),
1.2V (DDR4) and 1.1V (LPDDR4)
4.5V to 26V Battery Input Range
Resistor Adjustable Frequency
Over-/Under-Voltage Protection
Internal Voltage Ramp Soft-Start
Drives Large Synchronous Rectifier MOS
Richtek provides a recommended PCB layout in their application note AN033, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Richtek recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 2x the output voltage. Additionally, the capacitor's ripple current rating should be greater than the output current.
Although the datasheet specifies a maximum input voltage of 18V, Richtek recommends limiting the input voltage to 15V to ensure reliable operation and prevent damage to the internal components.
The RT8231CGQW has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and GND. The resistor value determines the overcurrent threshold. Richtek provides a calculation formula for the resistor value in their datasheet.
Richtek recommends using a ceramic or film capacitor with a value between 1uF to 10uF, and a voltage rating of at least 2x the input voltage. The input capacitor helps to filter out noise and reduce the input voltage ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT8231CGQW Overview

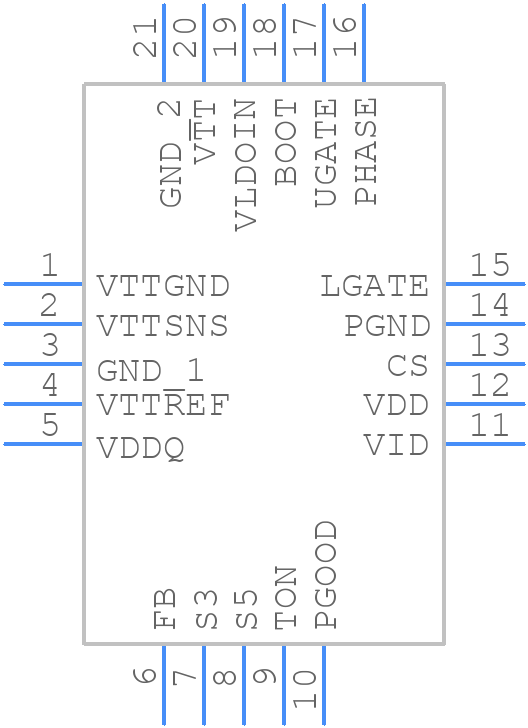

Use the download button to access the RT8231CGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT823,
or try a keyword search, such as Switching Regulator or Controllers
