RT8284NGS - RICHTEK

Description: Switching Voltage Regulators 2A, 23V, 340kHz Synchronous Step-Down Converter

Download RT8284NGS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

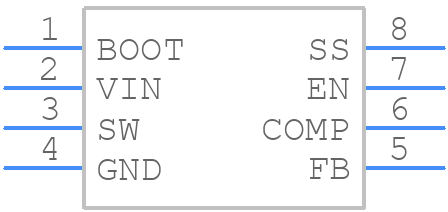

Symbol
RT8284NGS - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8284NGS - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - SOP-8
click to zoom
3D Models
RT8284NGS - RICHTEK - 3D model - Small Outline Packages - SOP-8
click to zoom

RT8284NGS Details

  • Manufacturer Part Number:

    RT8284NGS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP-8

  • Manufacturer Package Code:

    8SOP

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-G8

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    380 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

RT8284NGS Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane and ensure good thermal conductivity.
  • Use a high-quality output capacitor with low ESR, ensure the input capacitor is close to the VIN pin, and add a 10nF capacitor between the FB pin and GND for noise filtering.
  • The maximum input voltage is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • Use a resistor divider network between the output and the FB pin to set the desired output voltage. The ratio of the resistors determines the output voltage.
  • The EN pin is an active-high enable input. Connect it to VIN or a logic signal to enable or disable the regulator. When EN is low, the regulator is in shutdown mode.
