RT8292AHGSP - RICHTEK

Description: 2A, 23V, 340kHz Synchronous Step-Down Converter

Download RT8292AHGSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

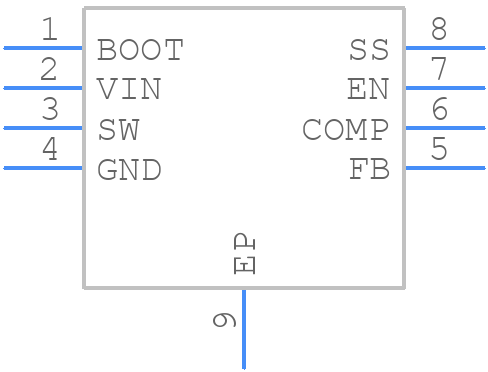

RT8292AHGSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8292AHGSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - RT8292A
click to zoom
3D Models
RT8292AHGSP - RICHTEK - 3D model - Small Outline Packages - RT8292A
click to zoom

RT8292AHGSP Details

  • Manufacturer Part Number:

    RT8292AHGSP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PSOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

RT8292AHGSP Frequently Asked Questions (FAQs)

  • A 1-10uF ceramic capacitor (X5R or X7R dielectric) is recommended for input decoupling, placed as close to the VIN pin as possible.
  • Use a 10nF-22nF ceramic capacitor (X5R or X7R dielectric) for output decoupling, and ensure the output capacitor's ESR is within the recommended range (0.05Ω to 5Ω).
  • The input voltage ripple should be limited to ≤ 1% of the input voltage to ensure stable operation and prevent output voltage fluctuations.
  • Yes, the RT8292AHGSP is rated for operation up to 125°C (TJ), but ensure proper thermal design and heat dissipation to prevent overheating.
  • Use the formula: Pd = (VIN - VOUT) x IOUT. Calculate the junction temperature (TJ) using the thermal resistance (RθJA) and power dissipation (Pd): TJ = TA + (RθJA x Pd).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT8292AHGSP Overview

Use the download button to access the RT8292AHGSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT829, or try a keyword search, such as Switching Regulator or Controllers
