Richtek provides a recommended PCB layout in their application note ANI03, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To optimize output voltage accuracy and stability, ensure that the input voltage is within the recommended range, use a high-quality output capacitor with low ESR, and minimize the distance between the output capacitor and the RT8298EZQW. Additionally, consider using a voltage reference IC with high accuracy and low noise.
Although not explicitly stated in the datasheet, Richtek recommends keeping the input voltage ripple below 1% of the nominal input voltage to ensure reliable operation and minimize the risk of oscillation or instability.
While the RT8298EZQW is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management guidelines provided in the datasheet to ensure reliable operation in high-temperature environments. Additionally, consult with Richtek's application engineers for specific guidance on high-temperature applications.
To troubleshoot oscillation or instability issues, check the input voltage, output capacitor, and PCB layout for any anomalies. Ensure that the input voltage is within the recommended range, and the output capacitor meets the recommended specifications. Consult Richtek's application notes and technical support resources for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT8298EZQW Overview

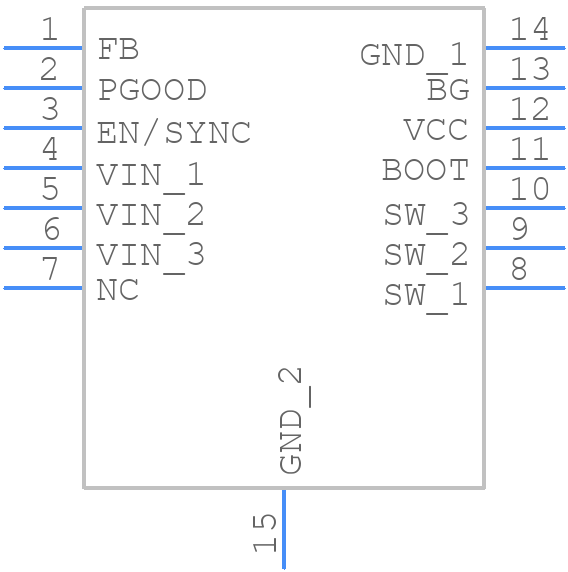

Use the download button to access the RT8298EZQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT829,
or try a keyword search, such as Switching Regulator or Controllers
