RT8299AZSP - RICHTEK

Description: IC REG BUCK ADJUSTABLE 3A 8SOP

Download RT8299AZSP Model

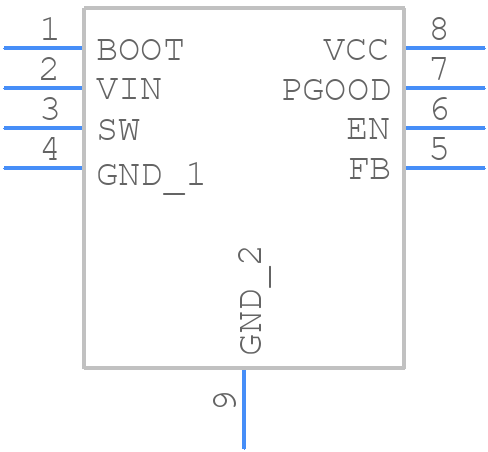

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT8299AZSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (Exposed Pad)
click to zoom
3D Models
RT8299AZSP - RICHTEK  - 3D model - Small Outline Packages - 8-Lead SOP (Exposed Pad)
click to zoom

RT8299AZSP Details

  • Manufacturer Part Number:

    RT8299AZSP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PSOP-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    575 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.905 mm

RT8299AZSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane and ensure good thermal conduction to the surrounding components.
  • Use a high-quality output capacitor with low ESR, ensure the input capacitor is properly decoupled, and add a 10nF capacitor between the FB pin and GND to reduce noise.
  • The maximum input voltage is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • The output voltage accuracy is typically ±2% over the entire operating range. Calculate the output voltage using the formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the feedback resistors.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close as possible to the VIN pin.
