Part Image

RT9026GQW - RICHTEK

Description: - Converter, DDR Bus Termination Regulator Voltage Regulator IC 1 Output 10-WDFN (3x3)

Download RT9026GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

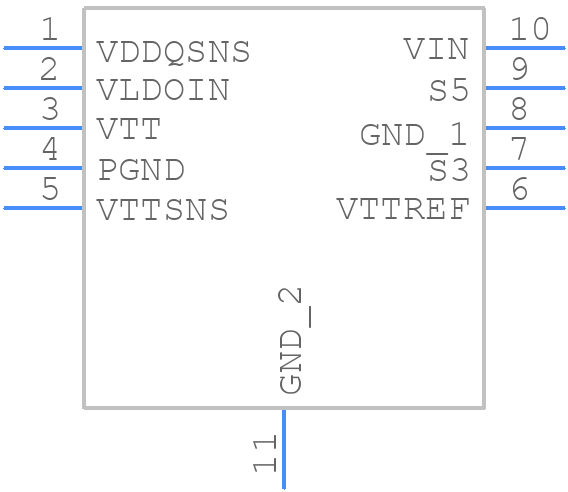

RT9026GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9026GQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - W-Type 10L DFN 3x3 Package
click to zoom
3D Models
RT9026GQW - RICHTEK - 3D model - Small Outline No-lead - W-Type 10L DFN 3x3 Package
click to zoom

RT9026GQW Details

  • Manufacturer Part Number:

    RT9026GQW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    WDFN-10

  • Package Description:

    WDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10WDFN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

RT9026GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT9026GQW's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • Use a high-quality output capacitor with low ESR and a minimum capacitance of 10uF. Also, ensure the input voltage is stable and within the recommended range. Additionally, use a low-noise, low-ESR input capacitor to filter out noise and ripple.
  • The RT9026GQW can handle input voltages up to 18V, but it's recommended to operate within the recommended input voltage range of 7V to 15V for optimal performance and reliability.
  • Implement overcurrent protection using a fuse or a current-sensing resistor. Also, ensure proper thermal design and heat sinking to prevent overheating. Monitor the device's temperature and shut it down if it exceeds the maximum operating temperature.
  • Yes, the RT9026GQW is suitable for high-reliability and automotive applications. However, ensure that you follow the recommended operating conditions, and perform thorough testing and validation to meet the specific requirements of your application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT9026GQW Overview

Use the download button to access the RT9026GQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT902, or try a keyword search, such as Other Regulators
