RT9048GSP - RICHTEK

Description: IC REG LINEAR POS ADJ 2A 8SOP

Download RT9048GSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

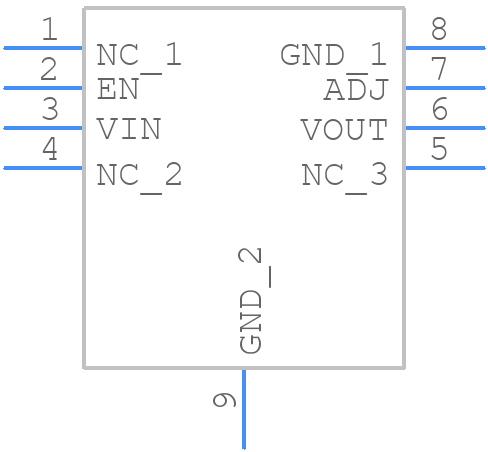

RT9048GSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9048GSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (Exposed Pad)
click to zoom
3D Models
RT9048GSP - RICHTEK - 3D model - Small Outline Packages - 8-Lead SOP (Exposed Pad)
click to zoom

RT9048GSP Details

  • Manufacturer Part Number:

    RT9048GSP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    PSOP-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.24 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9025 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    5.4 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.753 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.905 mm

RT9048GSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT9048GSP's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less, and to decouple the input with a 1uF capacitor.
  • The maximum input voltage that can be applied to the RT9048GSP is 18V, but it is recommended to operate within the specified input voltage range of 7V to 15V for optimal performance and reliability.
  • The RT9048GSP has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it is still recommended to add external overcurrent protection and thermal monitoring to ensure the device operates within safe limits.
  • A low-ESR ceramic capacitor with a value of 1uF to 10uF is recommended for input decoupling. The capacitor should be placed as close as possible to the VIN pin of the RT9048GSP.
