Part Image

RT9059-GQW - RICHTEK

Description: Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 10-WDFN (2.5x2.5)

Download RT9059-GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

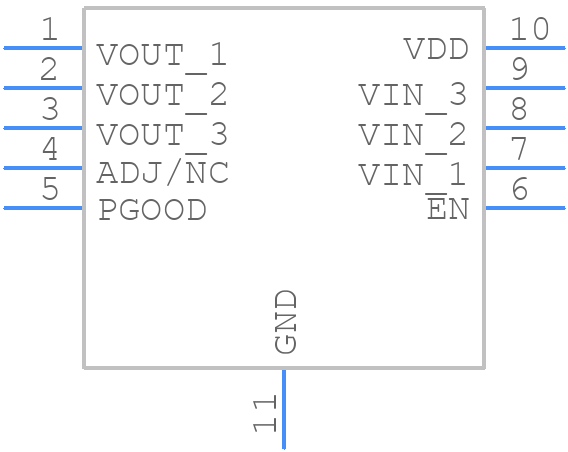

Symbol
RT9059-GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9059-GQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - RT6150AGQW-1
click to zoom
3D Models
RT9059-GQW - RICHTEK - 3D model - Small Outline No-lead - RT6150AGQW-1
click to zoom

RT9059-GQW Details

  • Manufacturer Part Number:

    RT9059-GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WDFN-10

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7.3

  • Dropout Voltage1-Max:

    0.45 V

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    5.5 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

RT9059-GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT9059GQW's thermal pad should be connected to the ground plane using multiple thermal vias to ensure efficient heat dissipation.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a minimum ESR of 10mΩ for the output capacitor is recommended to prevent oscillations.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
  • While ceramic capacitors can be used, they may not be the best choice due to their high ESR. A low-ESR electrolytic capacitor or a polymer capacitor is recommended for the output capacitor to ensure stability and low output voltage ripple.
  • The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency can be estimated from the datasheet's efficiency curve or by measuring the input and output currents and voltages.
