RT9068-33GFP - RICHTEK

Description: RICHTEK - RT9068-33GFP - LDO, FIXED, 3.3V, 0.05A, MSOP-8

Download RT9068-33GFP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

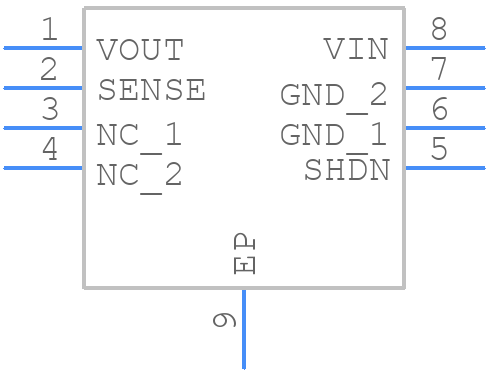

Symbol
RT9068-33GFP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9068-33GFP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead MSOP-1
click to zoom
3D Models
RT9068-33GFP - RICHTEK - 3D model - Small Outline Packages - 8-Lead MSOP-1
click to zoom

RT9068-33GFP Details

  • Manufacturer Part Number:

    RT9068-33GFP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP-8(PP)

  • Manufacturer Package Code:

    MSOP-8(PP)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Dropout Voltage1-Max:

    0.23 V

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3.1 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    3.36 V

  • Output Voltage1-Min:

    3.24 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Voltage Tolerance-Max:

    1.8%

  • Width:

    3.1 mm

RT9068-33GFP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT9068-33GFP should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less, and to decouple the input with a 1uF capacitor.
  • The maximum input voltage that can be applied to the RT9068-33GFP is 18V, but it is recommended to operate within the specified input voltage range of 6.5V to 15V for optimal performance and reliability.
  • The RT9068-33GFP has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it is recommended to add external protection components such as fuses or PTC resistors to prevent damage from excessive current or temperature.
  • The RT9068-33GFP is rated for operation up to 85°C, but it can be derated for higher temperatures. Consult the datasheet for thermal derating curves and ensure proper heat sinking and thermal management.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT9068-33GFP Overview

Use the download button to access the RT9068-33GFP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT906, or try a keyword search, such as Linear Regulator ICs
