RT9068-33GSP - RICHTEK

Description: RICHTEK - RT9068-33GSP - LDO Voltage Regulator, Fixed, 4.5 V to 60 V in, 3.3 V/50 mA out, 230 mV drop, SOP-8

Download RT9068-33GSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

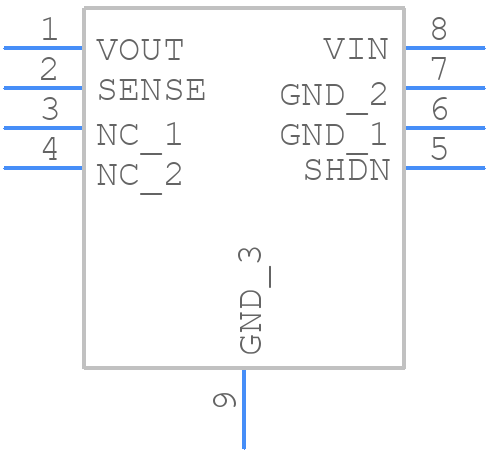

RT9068-33GSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9068-33GSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (Exposed Pad)
click to zoom
3D Models
RT9068-33GSP - RICHTEK - 3D model - Small Outline Packages - 8-Lead SOP (Exposed Pad)
click to zoom

RT9068-33GSP Details

  • Manufacturer Part Number:

    RT9068-33GSP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PSOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Dropout Voltage1-Max:

    0.23 V

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9025 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    3.36 V

  • Output Voltage1-Min:

    3.24 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.753 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Voltage Tolerance-Max:

    1.8%

  • Width:

    3.905 mm

RT9068-33GSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT9068-33GSP should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF or higher). Also, ensure the input voltage is stable and within the recommended range.
  • The maximum input voltage is 18V, but it's recommended to keep it below 15V to ensure reliable operation and minimize power dissipation.
  • The RT9068-33GSP is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage to ensure reliable operation above 70°C.
  • Use an external current-sensing resistor and a fuse or a PTC (Positive Temperature Coefficient) thermistor to detect overcurrent conditions. Also, ensure the output is short-circuit protected by adding a current-limiting resistor or a fuse.
