RT9068GSP - RICHTEK

Description: RICHTEK - RT9068GSP - LDO, ADJ, 1.25V TO 60V, 1A, SOP-8

Download RT9068GSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

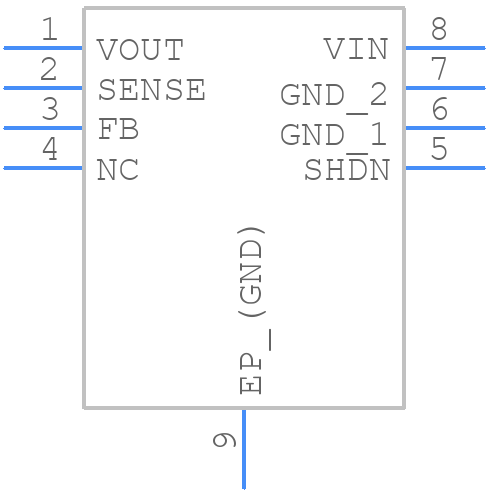

Symbol
RT9068GSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9068GSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (Exposed Pad)
click to zoom
3D Models
RT9068GSP - RICHTEK - 3D model - Small Outline Packages - 8-Lead SOP (Exposed Pad)
click to zoom

RT9068GSP Details

  • Manufacturer Part Number:

    RT9068GSP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PSOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Dropout Voltage1-Max:

    0.23 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.902 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    60 V

  • Output Voltage1-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.753 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.905 mm

RT9068GSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane and ensure good thermal conduction to the surrounding components.
  • Ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R). Also, minimize the distance between the RT9068GSP and the output capacitor.
  • The maximum allowable ripple voltage is 10% of the input voltage. Exceeding this may affect the regulator's stability and output voltage regulation.
  • Yes, but ensure it is a high-quality, low-ESR ceramic capacitor (e.g., X5R or X7R) with a sufficient value (e.g., 10uF or higher) to maintain stability and minimize output voltage droop.
  • Calculate the power dissipation using the formula: Pd = (Vin - Vout) x Iout. Ensure the calculated power dissipation is within the recommended maximum power dissipation of 3.5W.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT9068GSP Overview

Use the download button to access the RT9068GSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT906, or try a keyword search, such as Linear Regulator ICs
