RT9088AGQW - RICHTEK

Description: IC REG CONV DDR 1OUT 10WDFN

Download RT9088AGQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

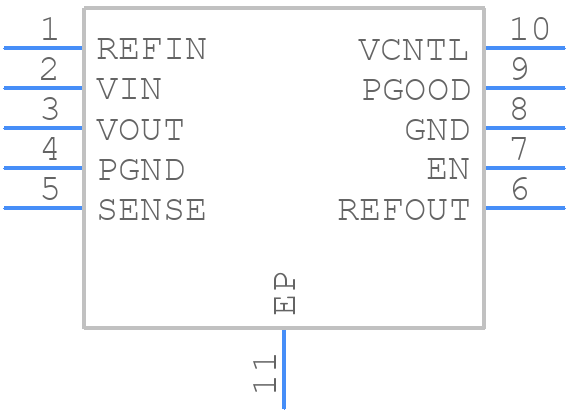

RT9088AGQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9088AGQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - RT6150AGQW-1
click to zoom
3D Models
RT9088AGQW - RICHTEK - 3D model - Small Outline No-lead - RT6150AGQW-1
click to zoom

RT9088AGQW Details

  • Manufacturer Part Number:

    RT9088AGQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

RT9088AGQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT9088AGQW's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it is essential to follow the recommended component values and PCB layout guidelines. Additionally, the input capacitor should be placed close to the VIN pin, and the output capacitor should be placed close to the VOUT pin.
  • Although the datasheet specifies a maximum input voltage of 18V, it is recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
  • The output voltage accuracy can be calculated by considering the tolerance of the internal voltage reference, the resistor divider network, and the output voltage feedback resistors. A detailed calculation is provided in the application note AN-103.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is pulled high, the regulator is enabled, and when it is pulled low, the regulator is disabled. The EN pin can be connected to a logic signal or a switch to control the regulator's operation.
