RT9089AGQW(2) - RICHTEK

Description: DDR TERMINATION REGULATOR, 2A, WDFN-10; Memory Supported:DDR1, DDR2, DDR3, LPDDR3, DDR4, LPDDR4, QDR; Source / Sink Current:2A; Supply Voltage Min:1.1V; Supply Voltage Max:3.5V; DDR Regulator Case Style:WDFN; No. of Pins:10Pins; RoHS Compliant: Yes

Download RT9089AGQW(2) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

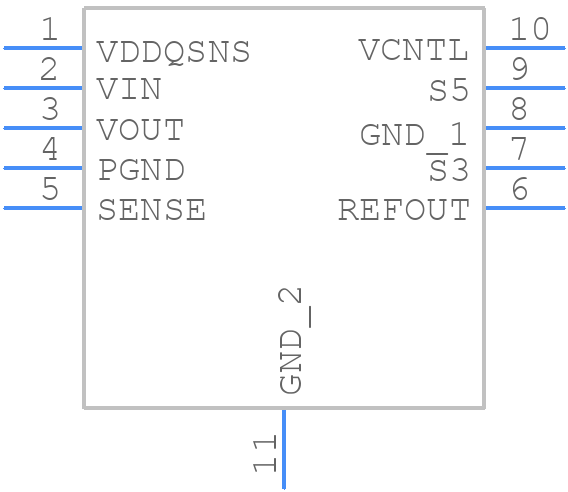

RT9089AGQW(2) - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9089AGQW(2) - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - 10L DFN 2X2
click to zoom
3D Models
RT9089AGQW(2) - RICHTEK - 3D model - Small Outline No-lead - 10L DFN 2X2
click to zoom

RT9089AGQW(2) Details

  • Manufacturer Part Number:

    RT9089AGQW(2)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WDFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

RT9089AGQW(2) Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic). Also, minimize the distance between the output capacitor and the device.
  • The maximum allowable ripple voltage is 10% of the input voltage. Exceeding this may affect the device's stability and performance.
  • While the datasheet recommends a specific inductor value and type, you can use a different one if it meets the required inductance and current rating. However, this may affect the device's performance and efficiency.
  • Check the PCB layout, component values, and soldering quality. Ensure that the input and output capacitors are of sufficient value and type. Also, verify that the device is operated within the recommended temperature range.
