RT9624BZS - RICHTEK

Description:  Drive Two N-MOSFETs  Shoot Through Protection  Embedded Bootstrap Diode  Support High Switching Frequency  Fast Output Rising Time  Tri-State PWM Input for Output Shutdown  Small SOP-8, SOP-8 (Exposed Pad) and 8-Lead WDFN Packages  RoHS Compliant and Halogen Free

Download RT9624BZS Model

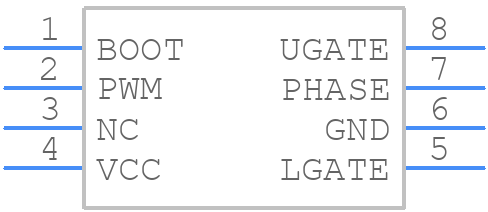

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT9624BZS - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8 lead sop
click to zoom
3D Models
RT9624BZS - RICHTEK  - 3D model - Small Outline Packages - 8 lead sop
click to zoom

RT9624BZS Details

  • Manufacturer Part Number:

    RT9624BZS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP-8

  • Manufacturer Package Code:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

RT9624BZS Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note ANI06, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The output capacitor selection depends on the output voltage, output current, and ripple requirements. Richtek recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. The datasheet provides a detailed calculation for output capacitor selection.
  • The maximum junction temperature (Tj) for the RT9624BZS is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable long-term operation.
  • While the RT9624BZS can operate up to 150°C, it's essential to consider the derating curves and thermal management when operating in high-temperature environments. Richtek provides derating curves in the datasheet to help designers ensure reliable operation.
  • Oscillations or instability issues can be caused by improper PCB layout, inadequate output capacitance, or incorrect component selection. Richtek recommends following their application notes and design guidelines to minimize the risk of oscillations. If issues persist, consult with Richtek's technical support team for assistance.
