RT9624CGQWA - RICHTEK

Description: Gate Drivers Single Phase Synchronous Rectified Buck MOSFET Driver

Download RT9624CGQWA Model

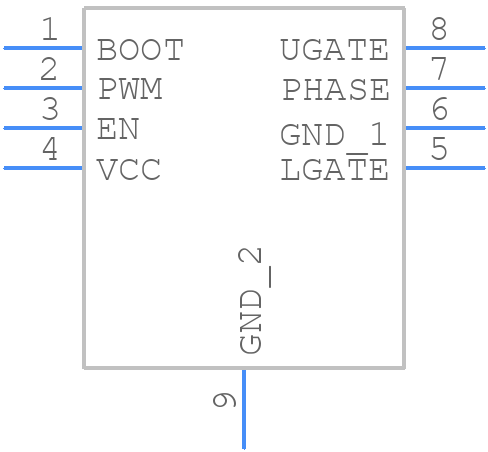

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT9624CGQWA - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - W-Type 8SL DFN 2x2 Package-2025
click to zoom
3D Models
RT9624CGQWA - RICHTEK  - 3D model - Small Outline No-lead - W-Type 8SL DFN 2x2 Package-2025
click to zoom

RT9624CGQWA Details

  • Manufacturer Part Number:

    RT9624CGQWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WDFN-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    6

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-XDSO-N8

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.022 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    2 mm

RT9624CGQWA Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note ANI06, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • Richtek recommends using an inductor with a minimum inductance of 1.5μH and a maximum DCR of 100mΩ. The output inductor should also be rated for the maximum output current and have a suitable saturation current rating. Refer to Richtek's application note ANI07 for more information.
  • Richtek recommends using a high-quality, low-ESR ceramic capacitor with a value of 10μF to 22μF. The input capacitor should be rated for the maximum input voltage and have a suitable ripple current rating.
  • To ensure stability, follow Richtek's guidelines for PCB layout, component selection, and output capacitor selection. Additionally, ensure that the output capacitor has a suitable ESR and that the feedback network is properly designed. Refer to Richtek's application note ANI08 for more information.
  • The maximum junction temperature rating for the RT9624CGQW is 150°C. However, it's recommended to operate the device at a junction temperature below 125°C to ensure reliable operation and minimize thermal stress.
