RTAP31S12W25FS - LITTELFUSE

RTAP31S12W25FS Details

• Manufacturer Part Number:

  RTAP31S12W25FS

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  7

• Actuator Length:

  0.984 inch

• Actuator Type:

  FLAT SHAFT TYPE

• Body Breadth:

  22 mm

• Body Length or Diameter:

  25.8 mm

• Center Contact Material:

  BRASS

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  .15A@60VAC

• Contact Current(AC)-Max:

  0.15 A

• Contact Resistance:

  0.15 mΩ

• Contact Voltage(AC)-Max:

  60 V

• Dielectric Withstand Volts:

  500VRMS V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  BRASS

• End Contact Plating:

  SILVER

• Indexing Angle:

  30 deg

• Insulation Resistance:

  1000000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  12

• Number of Switch Sections:

  1

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

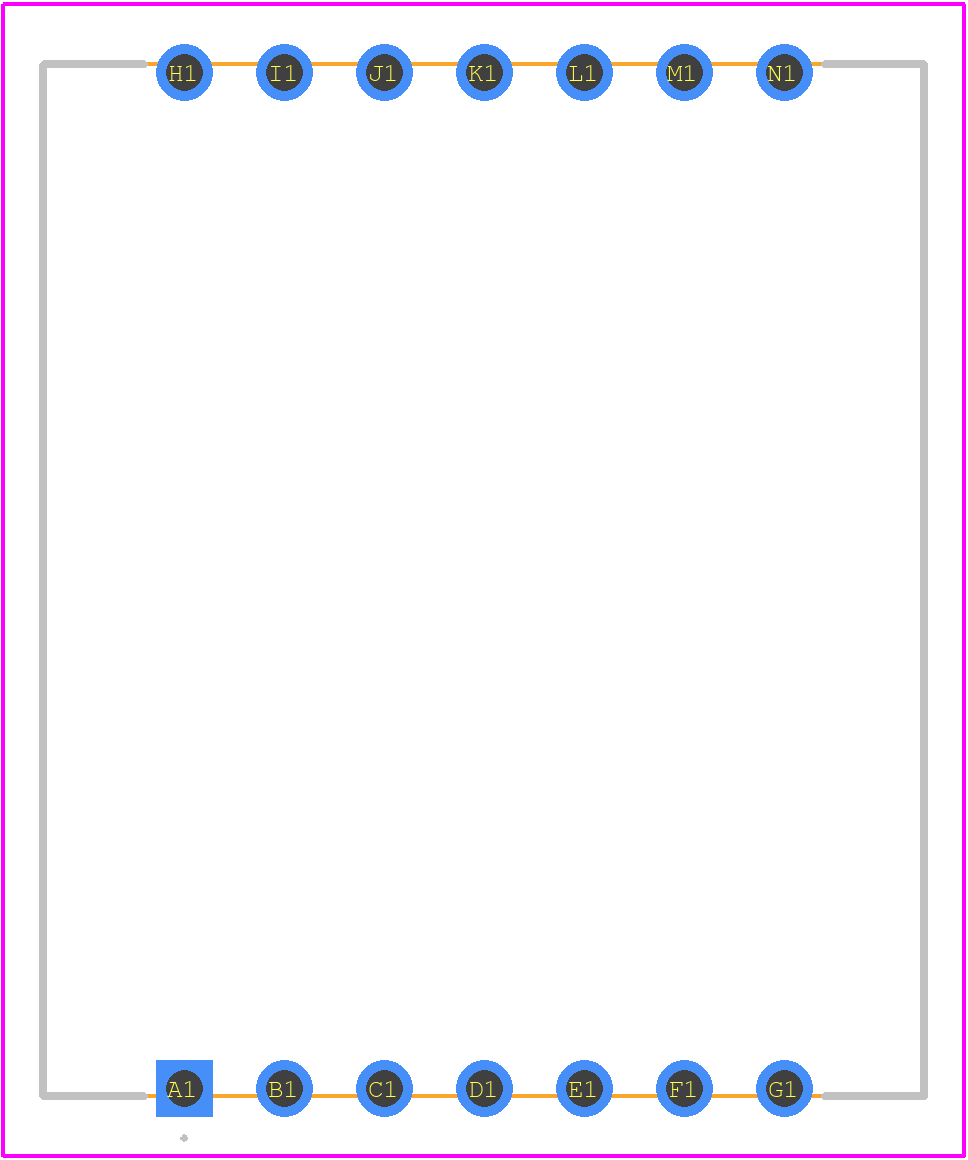

• PCB Hole Count:

  14

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SP12T

• Switch Type:

  ROTARY SWITCH

• Terminal Finish:

  SILVER

• Terminal Length:

  0.15 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
