Part Image

RTD14730 - TE Connectivity

Description: Body Features: Insulation Special Features Tracking Index of Relay Base PTI250 | Product Weight .494 OZ | Product Weight 14 G | Contact Features: Contact Arrangement 1 Form C (CO) | Contact Number of Poles 1 | Contact Current Rating (Max) 16 AMP | Contact Current Class 16 AMP | Contact Material AgNi90/10 | Dimensions: Height Class (Mechanical) 15 – 16 MM | Product Height .618 INCH | Length Class (Mechanical) 25 – 30 MM | Product Width .5 INCH | Product Width 12.7 MM | Insulation Clearance Between Contac

Download RTD14730 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

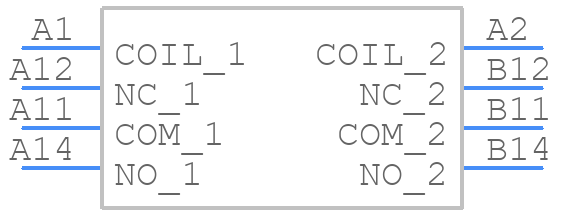

RTD14730 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
RTD14730 - TE Connectivity PCB footprint - Other - Other - RTD14730-3
click to zoom
3D Models
RTD14730 - TE Connectivity - 3D model - Other - RTD14730-3
click to zoom

RTD14730 Details

  • Manufacturer Part Number:

    RTD14730

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    COIL OPERATE VOLTAGE(AC): 172.5 V, COIL RELEASE VOLTAGE(AC): 34.5 V

  • Body Breadth:

    12.7 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Current(AC)-Max:

    0.003 A

  • Coil Power:

    750 mW

  • Coil Resistance:

    32500 Ω

  • Coil Voltage(AC)-Max:

    230 V

  • Coil/Input Supply Type:

    AC

  • Contact Current(AC)-Max:

    16 A

  • Contact Current(DC)-Max:

    16 A

  • Contact Voltage(AC)-Max:

    400 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    5000 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • End Contact Material:

    SILVER NICKEL

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    70 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    29mm x 12.7mm x 15.7mm

  • Reference Standard:

    BEAB; FIMKO; SEMKO; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    14 g

RTD14730 Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow this layout to ensure proper thermal performance and to prevent thermal resistance issues.
  • To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a high melting point (e.g., SAC305) and a flux that is compatible with the component's finish. Inspect the solder joints for any signs of cold soldering, bridging, or other defects.
  • The maximum power rating for RTD14730 is not explicitly stated in the datasheet. However, based on the thermal resistance and maximum junction temperature, it's recommended to limit the power dissipation to 1-2 W to ensure reliable operation and prevent overheating.
  • While the RTD14730 is a robust component, it's essential to evaluate its suitability for high-vibration or high-shock environments. TE Connectivity provides guidance on vibration and shock testing in their application note AN-1043. Additionally, consider using a secure mounting method, such as a screw or clip, to prevent the component from detaching during operation.
  • To prevent damage during storage and shipping, follow proper handling and storage procedures. Store the components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid bending, flexing, or applying excessive pressure to the component, as this can cause damage to the internal structure.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RTD14730 Overview

Use the download button to access the RTD14730 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTD14, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
