RTE24524 - TE Connectivity

RTE24524 Details

• Manufacturer Part Number:

  RTE24524

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• Factory Lead Time:

  13 Weeks, 5 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  6.9

• Additional Feature:

  COIL OPERATE VOLTAGE(AC): 18 V, COIL RELEASE VOLTAGE(AC): 3.6 V

• Body Breadth:

  12.7 mm

• Body Height:

  15.7 mm

• Body Length or Diameter:

  29 mm

• Coil Current(AC)-Max:

  0.032 A

• Coil Operate Voltage(AC):

  18 V

• Coil Power:

  760 mW

• Coil Release Voltage(AC):

  3.6 V

• Coil Resistance:

  350 Ω

• Coil Voltage(AC)-Max:

  24 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  AC

• Contact (AC) Max Power Rating R Load:

  2000VA@400VAC

• Contact (AC) Max Rating R Load:

  8A@400VAC

• Contact Current(AC)-Max:

  8 A

• Contact Current(DC)-Max:

  8 A

• Contact Voltage(AC)-Max:

  400 V

• Contact/Output Supply Type:

  AC/DC

• Dielectric Strength Between Coil and Contacts:

  5000 Vrms

• Dielectric Strength Between Open Contacts:

  1000 Vrms

• Electrical Life:

  30000 Cycle(s)

• End Contact Material:

  SILVER NICKEL

• Mounting Feature:

  PANEL MOUNT

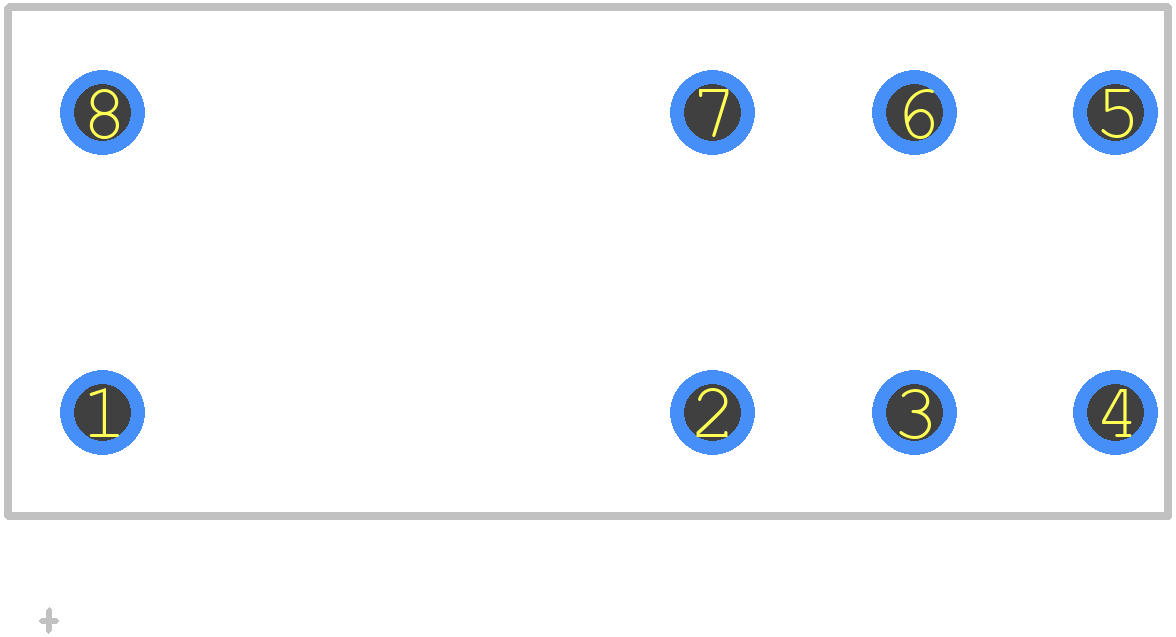

• Number of Terminals:

  8

• Operate Time:

  8 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; TUBE

• Physical Dimension:

  29mm x 12.7mm x 15.7mm

• Reference Standard:

  BEAB; CSA; UL; VDE

• Relay Action:

  MOMENTARY

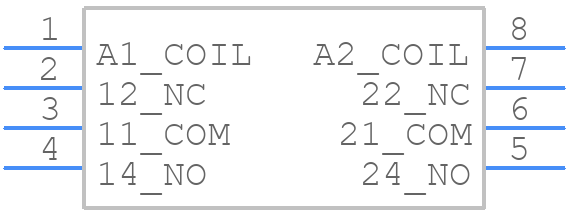

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  6 ms

• Sealing:

  RT3

• Surface Mount:

  NO

• Terminal Length:

  0.003599187198374397 inch

• Termination Type:

  SOLDER/QUICK CONNECT

• Weight:

  13 g
