- Part Number RTE24615
- Manufacturer TE Connectivity
- Pin Count 8
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - RTE24012
- Released Date Jun 27, 2019
- Last Modified Date Dec 15, 2024 9:33 PM UTC
- Pinout / Pin List Click Here (Member Only)
RTE24615 Details
-
Manufacturer Part Number:
RTE24615
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
Manufacturer:
TE Connectivity
-
YTEOL:
6.9
-
Additional Feature:
COIL OPERATE VOLTAGE(AC): 86.3 V, COIL RELEASE VOLTAGE(AC): 17.3 V
-
Body Breadth:
12.7 mm
-
Body Height:
15.7 mm
-
Body Length or Diameter:
29 mm
RTE24615 Frequently Asked Questions (FAQs)
-
TE Connectivity provides a recommended PCB layout in their application notes, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and reliability.
-
To ensure reliable connections, make sure to follow the recommended torque specifications for the terminal blocks, and use the correct wire gauge and insulation type. Additionally, ensure proper wire stripping and crimping techniques are used.
-
The RTE24615 is designed to operate in a temperature range of -40°C to 125°C, and can withstand humidity up to 95% RH. It's also designed to meet various environmental standards, including IEC 60068-2-27 and IEC 60068-2-30.
-
Yes, the RTE24615 is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G peak acceleration. However, it's essential to follow proper mounting and installation guidelines to ensure reliable operation.
-
The RTE24615 meets various safety standards, including UL 94V-0 and IEC 60695-11-10. It's essential to follow proper safety precautions when handling and installing the device, including avoiding overheating, electrical shock, and mechanical stress.
Trust Checks
Expert Contribution
System Verified
Community Approved
RTE24615 Overview

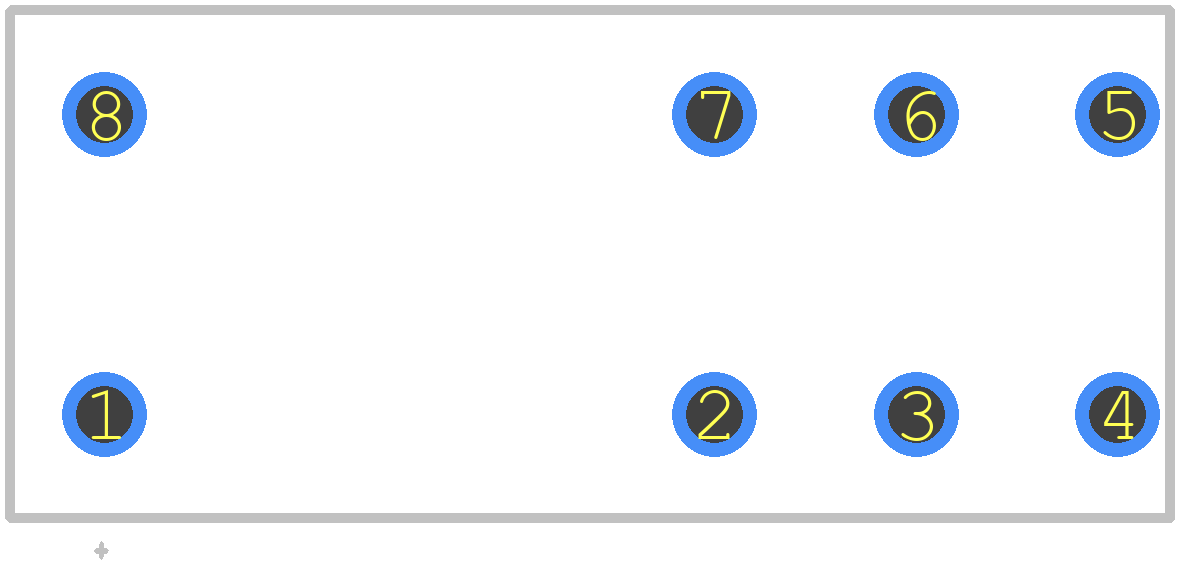

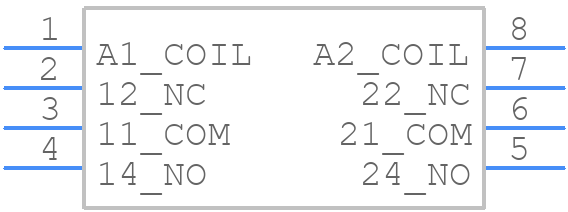

Use the download button to access the RTE24615 schematic symbol, PCB footprint, and 3D model.
