The recommended PCB layout for the RTL8201F-VB-CG can be found in the Realtek application note AN-102, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
The RTL8201F-VB-CG can be configured for different Ethernet modes using the PHY registers. The specific registers and values required for each mode can be found in the RTL8201F-VB-CG datasheet and application notes. Additionally, Realtek provides a software development kit (SDK) that includes example code and APIs for configuring the PHY.
The power consumption of the RTL8201F-VB-CG varies depending on the operating mode and speed. The typical power consumption is around 350mW in 1000Mbps mode. The thermal characteristics of the device are also dependent on the operating conditions, but the junction-to-ambient thermal resistance (RθJA) is typically around 45°C/W. More detailed information can be found in the datasheet and thermal design guide.
The RTL8201F-VB-CG supports VLAN tagging and priority queuing through the use of VLAN tags and priority bits in the Ethernet frames. The device also has built-in hardware support for VLAN filtering and priority queuing. The specific implementation details can be found in the datasheet and application notes, and Realtek provides example code and APIs for configuring VLAN tagging and priority queuing.
The RTL8201F-VB-CG is designed to meet the EMI and EMC requirements of various regulatory bodies, including the FCC and CE. However, the device still requires proper PCB design, component selection, and shielding to minimize EMI and ensure EMC compliance. Realtek provides guidelines and recommendations for EMI and EMC design in the application notes and datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RTL8201F-VB-CG Overview

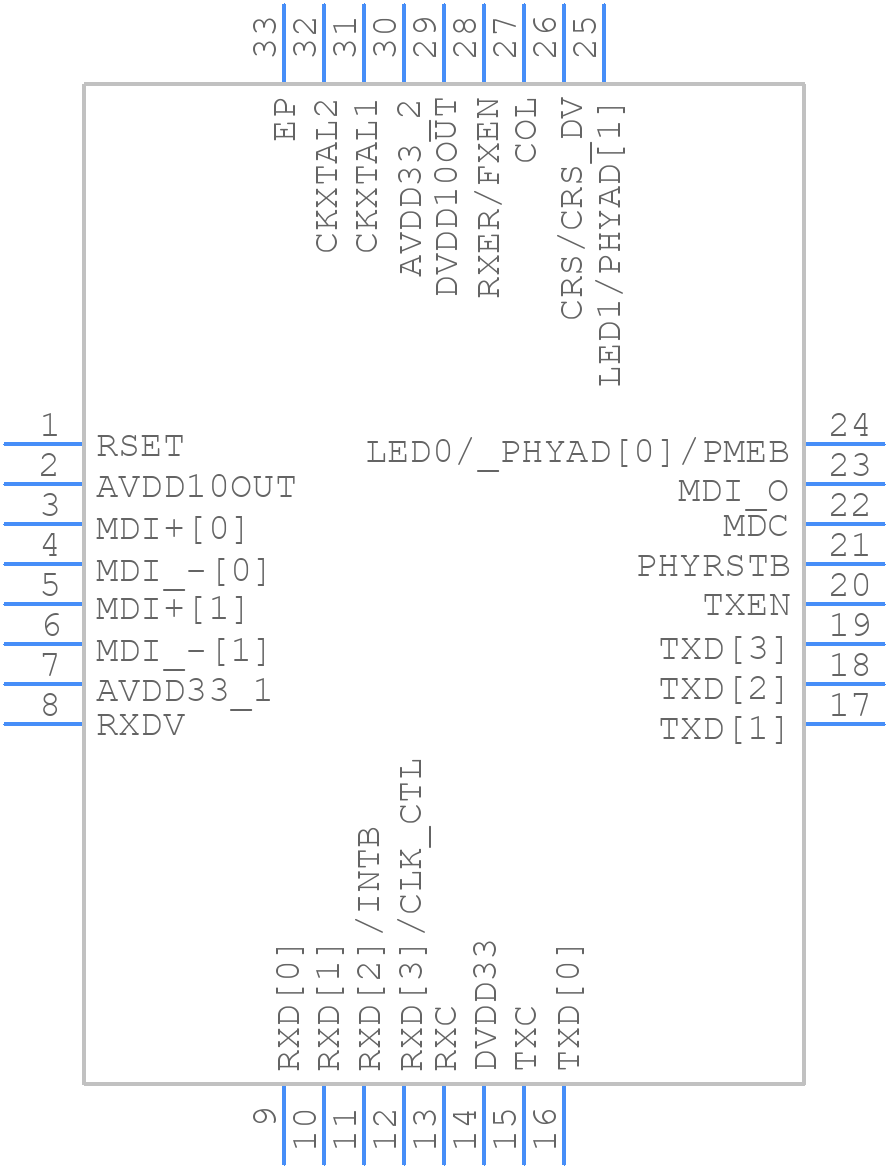

Use the download button to access the RTL8201F-VB-CG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTL82,
or try a keyword search, such as Network Interfaces
