The recommended PCB layout for the RTL8201FI-VC-CG can be found in the Realtek application note AN-102, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize EMI.
The RTL8201FI-VC-CG can be configured for different network modes using the PHY registers. The specific register settings can be found in the RTL8201FI-VC-CG datasheet, section 5.3. The device can also be configured using the Realtek-provided software development kit (SDK).
The RTL8201FI-VC-CG supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application and environment.
The RTL8201FI-VC-CG has built-in power management features, including power-down mode and wake-on-LAN (WOL) support. The device can be configured to enter low-power modes using the PHY registers. Additionally, the Realtek SDK provides APIs for power management.
The RTL8201FI-VC-CG has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within the recommended temperature range of 0°C to 70°C. Proper thermal design, including heat sinking and airflow, is recommended to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RTL8201FI-VC-CG Overview

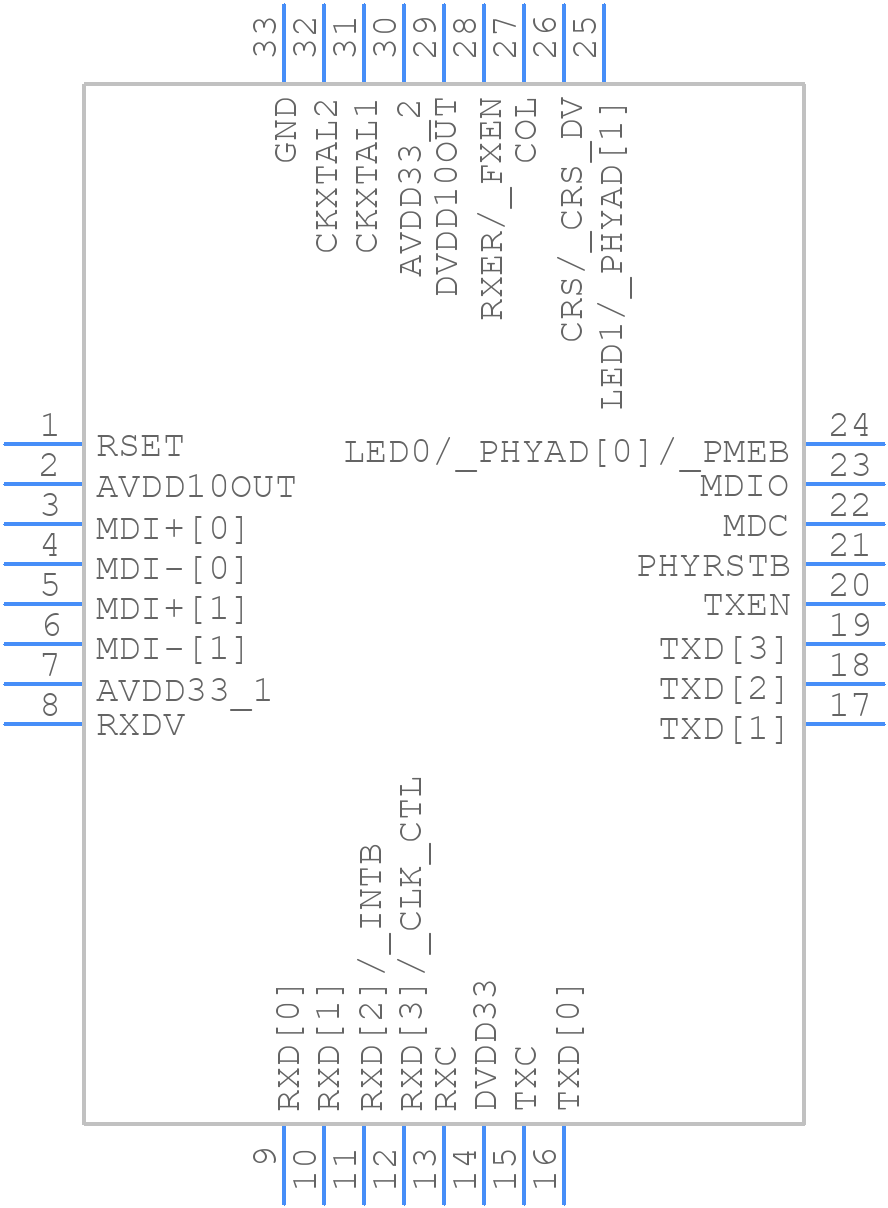

Use the download button to access the RTL8201FI-VC-CG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTL82,
or try a keyword search, such as Network Interfaces
