- Part Number RTL8201FL-VB-CG
- Manufacturer Realtek
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - LQFP-48
- Released Date Dec 27, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RTL8201FL-VB-CG Details
-
Manufacturer Part Number:
RTL8201FL-VB-CG
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
GREEN, MS-026, LQFP-48
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Realtek Semiconductor
-
YTEOL:
7.65
-
JESD-30 Code:
S-PQFP-G48
-
Length:
7 mm
-
Number of Functions:
1
-
Number of Terminals:
48
RTL8201FL-VB-CG Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the RTL8201FL-VB-CG can be found in the Realtek Semiconductor's application note AN003, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize EMI.
-
The RTL8201FL-VB-CG can be configured for different Ethernet modes (e.g., 10/100Mbps, full/half duplex) through the use of strap pins or by programming the device's registers. Refer to the datasheet and application notes for specific configuration details.
-
The RTL8201FL-VB-CG has several power management options, including Wake-on-LAN (WOL), power-down mode, and low-power mode. These options can be configured through register programming or external pin control.
-
The RTL8201FL-VB-CG supports VLAN tagging through the use of VLAN registers and VLAN packet processing. Refer to the datasheet and application notes for specific implementation details.
-
The RTL8201FL-VB-CG has a maximum junction temperature of 125°C. Thermal management considerations include providing adequate heat dissipation, using thermal pads or heat sinks, and ensuring proper airflow around the device.
Trust Checks
Community Provided
System Verified
Community Approved
RTL8201FL-VB-CG Overview

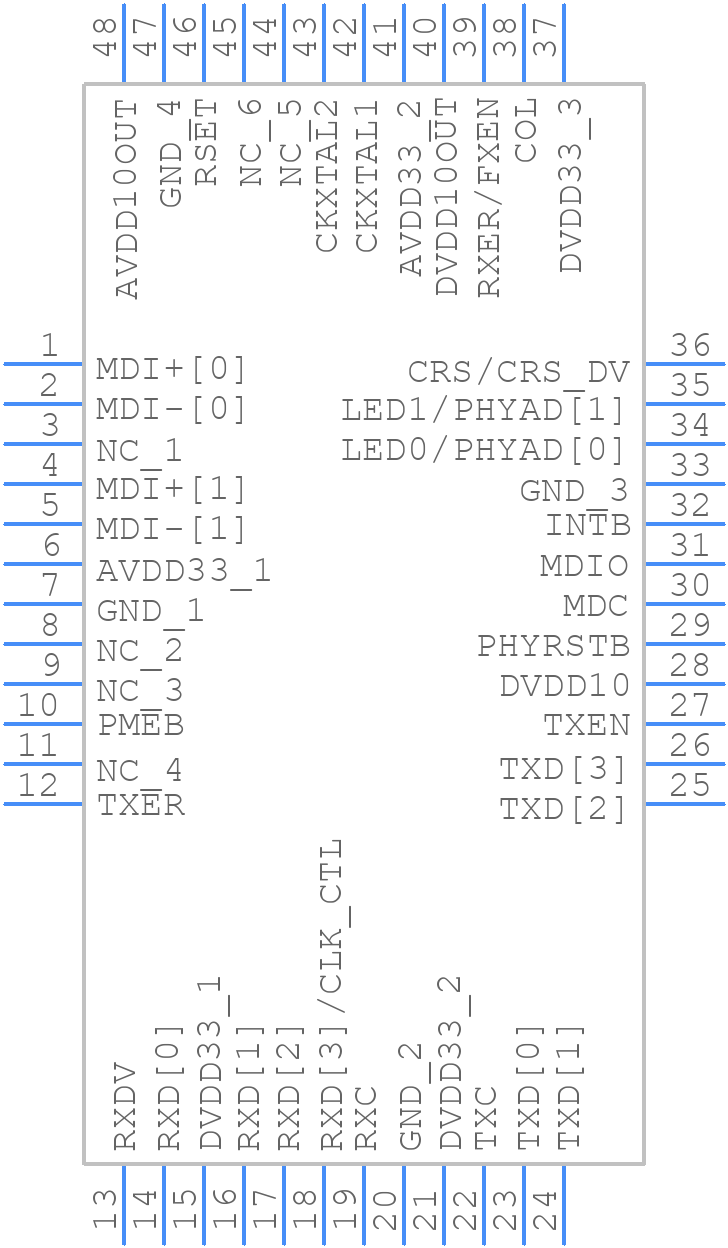

Use the download button to access the RTL8201FL-VB-CG schematic symbol, PCB footprint, and 3D model.
