- Part Number RTL8211E-VB-CG
- Manufacturer Realtek
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - G3VM-61B1
- Released Date Jan 18, 2019
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
RTL8211E-VB-CG Details
-
Manufacturer Part Number:
RTL8211E-VB-CG
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-48
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Realtek Semiconductor
-
YTEOL:
0
-
Data Rate:
1000000 Mbps
-
JESD-30 Code:
S-XQCC-N48
-
Length:
6 mm
-
Number of Functions:
1
RTL8211E-VB-CG Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the RTL8211E-VB-CG can be found in the Realtek application note AN-135, which provides guidelines for PCB design, component placement, and thermal management.
-
The RTL8211E-VB-CG supports VLAN tagging through the VLAN Tagging Register (VLANTR). The VLANTR register is used to configure the VLAN ID, priority, and CFI bits. Refer to the RTL8211E-VB-CG datasheet section 5.3.4 for more information.
-
The RTL8211E-VB-CG supports cable lengths up to 100 meters for 1000BASE-T and 100 meters for 100BASE-TX. However, the actual cable length may vary depending on the cable quality, noise environment, and system configuration.
-
The RTL8211E-VB-CG has a built-in power management feature that can be controlled through the Power Management Register (PMR). The PMR allows for dynamic adjustment of power consumption based on link speed and activity. Refer to the RTL8211E-VB-CG datasheet section 5.5 for more information.
-
The recommended crystal oscillator frequency for the RTL8211E-VB-CG is 25 MHz. This frequency is used as the reference clock for the PHY's internal clock generation.
Trust Checks
Community Provided
System Verified
Community Approved
RTL8211E-VB-CG Overview

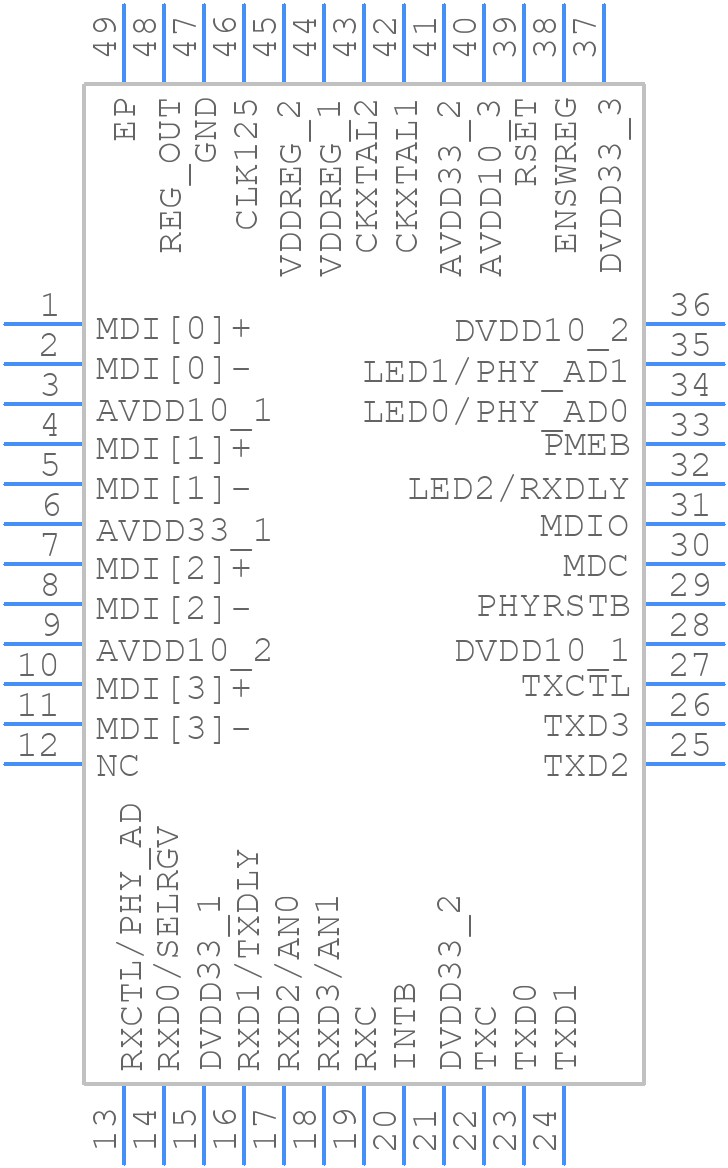

Use the download button to access the RTL8211E-VB-CG schematic symbol, PCB footprint, and 3D model.
