RTL8211E-VL-CG footprint, schematic symbol and 3D model by Realtek

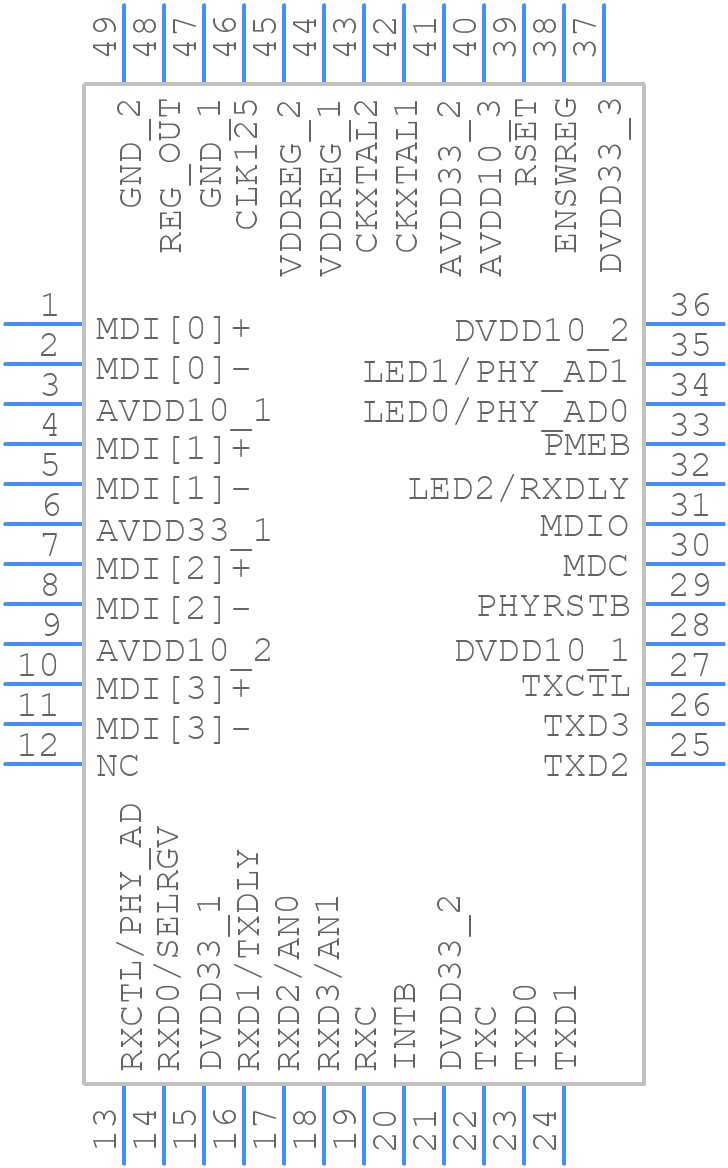

Symbol

click to zoom

PCB Footprints

RTL8211E-VL-CG - Realtek PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 QFN GREE

click to zoom

3D Models

RTL8211E-VL-CG - Realtek - 3D model - Quad Flat No-Lead - 48 QFN GREE

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RTL8211E-VL-CG
Part Number RTL8211E-VL-CG
Manufacturer Realtek
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 48 QFN GREE
Released Date Feb 11, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RTL8211E-VL-CG Details

Manufacturer Part Number:
RTL8211E-VL-CG
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
QFN-48
HTS Code:
8542.39.00.01
Manufacturer:
Realtek Semiconductor
YTEOL:
0
Data Rate:
1000000 Mbps
JESD-30 Code:
S-XQCC-N48
Length:
6 mm
Number of Functions:
1
Number of Terminals:
48
Number of Transceivers:
1
Operating Temperature-Max:
70 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC48,.24SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
1 mm
Supply Voltage-Nom:
1.05 V
Surface Mount:
YES
Telecom IC Type:
ETHERNET TRANSCEIVER
Temperature Grade:
COMMERCIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
6 mm

RTL8211E-VL-CG Frequently Asked Questions (FAQs)

The recommended PCB layout for the RTL8211E-VL-CG can be found in the Realtek application note AN-135, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
The RTL8211E-VL-CG can be configured for different Ethernet speeds using the Speed Control Register (SCR) and the Auto-Negotiation Advertisement Register (ANAR). The datasheet provides detailed information on how to set these registers to achieve the desired Ethernet speed.
The power consumption of the RTL8211E-VL-CG varies depending on the operating mode. In normal operation, the power consumption is typically around 350-400 mW. In power-down mode, the power consumption is around 10-20 mW. The exact power consumption can be found in the datasheet or by contacting Realtek support.
The RTL8211E-VL-CG supports VLAN tagging through the VLAN Tag Register (VLANTR). The datasheet provides detailed information on how to configure the VLANTR to implement VLAN tagging. Additionally, Realtek provides sample code and application notes to help with implementation.
The RTL8211E-VL-CG supports cable lengths up to 100 meters for Category 5e or higher cabling. However, the actual cable length supported may vary depending on the specific application and environment. It is recommended to consult the datasheet and application notes for more information.

Trust Checks

Community Provided

System Verified

Community Approved

RTL8211E-VL-CG Overview

Use the download button to access the RTL8211E-VL-CG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RTL82, or try a keyword search, such as Network Interfaces
