RTL8211F-CG - Realtek

Description: NTEGRATED 10/100/1000M ETHERNET TRANSCEIVER

Download RTL8211F-CG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

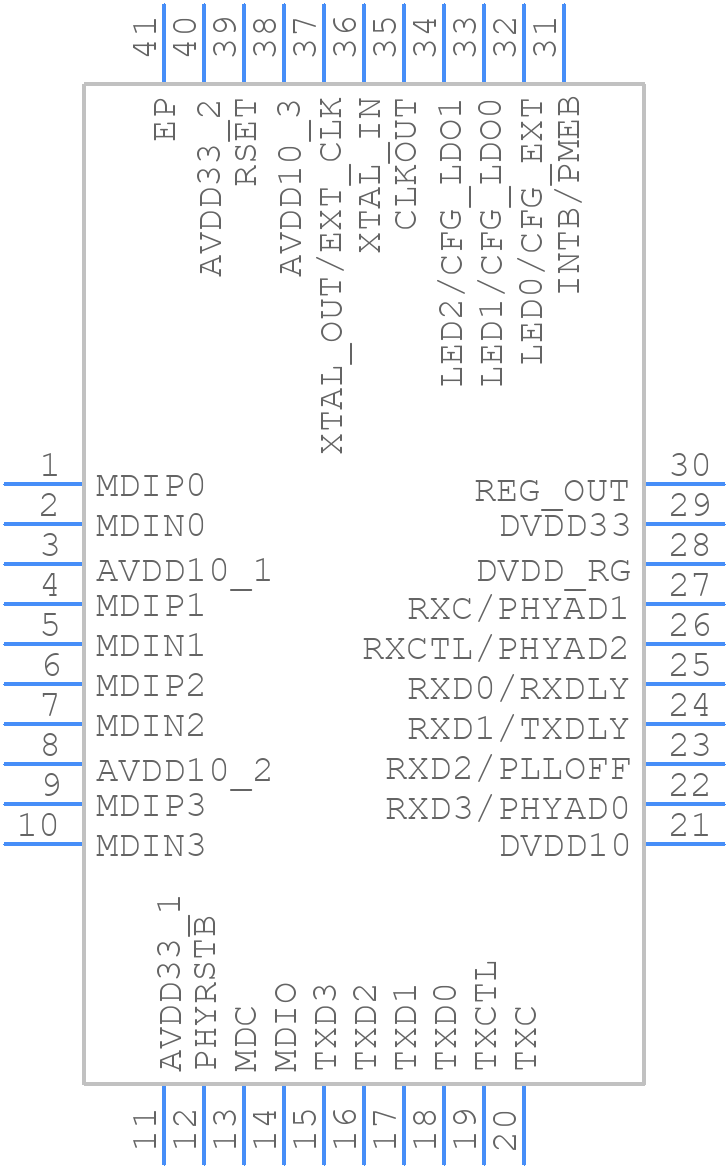

RTL8211F-CG - Realtek - PCB symbol
click to zoom
PCB Footprints
RTL8211F-CG - Realtek PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-41
click to zoom
3D Models
RTL8211F-CG - Realtek - 3D model - Quad Flat No-Lead - QFN-41
click to zoom

RTL8211F-CG Details

  • Manufacturer Part Number:

    RTL8211F-CG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Realtek Semiconductor

  • YTEOL:

    8.71

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

RTL8211F-CG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the RTL8211F-CG can be found in the Realtek application note AN-115, which provides guidelines for PCB design, component placement, and thermal considerations.
  • The RTL8211F-CG can be configured for different Ethernet speeds using the Speed Control Register (SCR) and the Auto-Negotiation Advertisement Register (ANAR). The specific configuration depends on the desired speed and duplex mode.
  • The power consumption of the RTL8211F-CG varies depending on the mode of operation. In typical operating conditions, the power consumption is around 350mW in 1000BASE-T mode and 200mW in 10/100BASE-TX mode. The power consumption can be further reduced in low-power modes.
  • The RTL8211F-CG supports VLAN tagging through the VLAN Tag Register (VLANTR). The VLAN tag can be inserted or stripped based on the configuration of the VLANTR and the VLAN Filter Register (VLANFR).
  • The RTL8211F-CG supports cable lengths up to 100 meters for 1000BASE-T and 100BASE-TX modes, and up to 200 meters for 10BASE-T mode, assuming a Category 5e or higher cable.
