RTL8211FI-CG - Realtek

Description: INTEGRATED 10/100/1000M ETHERNET PRECISION TRANSCEIVER

Download RTL8211FI-CG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

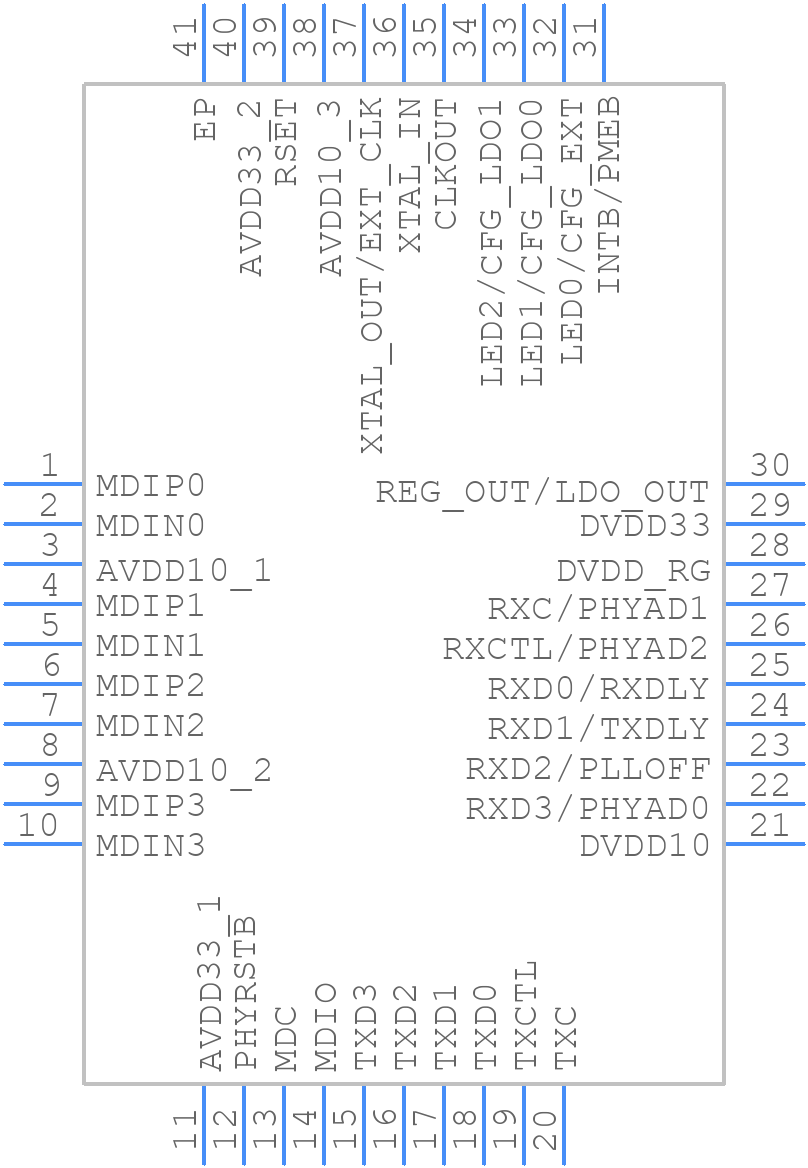

RTL8211FI-CG - Realtek - PCB symbol
click to zoom
PCB Footprints
RTL8211FI-CG - Realtek PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Pin QFN with ‘Green’ Package
click to zoom
3D Models
RTL8211FI-CG - Realtek - 3D model - Quad Flat No-Lead - 40-Pin QFN with ‘Green’ Package
click to zoom

RTL8211FI-CG Details

  • Manufacturer Part Number:

    RTL8211FI-CG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Realtek Semiconductor

  • YTEOL:

    8.71

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

RTL8211FI-CG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the RTL8211FI-CG can be found in the Realtek application note AN-135, which provides guidelines for PCB design, component placement, and thermal management.
  • The RTL8211FI-CG can be configured for different Ethernet speeds using the Speed Control Register (SCR) and the Auto-Negotiation Advertisement Register (ANAR). The specific configuration depends on the desired speed and duplex mode.
  • The power consumption of the RTL8211FI-CG varies depending on the mode of operation. In typical operating conditions, the power consumption is around 350mW in 1000BASE-T mode and 200mW in 100BASE-TX mode. The power consumption can be further reduced in low-power modes.
  • The RTL8211FI-CG supports VLAN tagging through the VLAN Tag Register (VLANTR). The VLAN tag can be inserted or removed based on the VLAN ID and priority. The specific implementation depends on the VLAN configuration and the network architecture.
  • The RTL8211FI-CG supports cable lengths up to 100 meters for 1000BASE-T and 100BASE-TX modes, and up to 200 meters for 10BASE-T mode, depending on the cable quality and the network environment.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RTL8211FI-CG Overview

Use the download button to access the RTL8211FI-CG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTL82, or try a keyword search, such as Network Interfaces
