RTL8211FSI-VS-CG - Realtek

Description: Ethernet Transceiver, 1-Trnsvr, CMOS

Download RTL8211FSI-VS-CG Model

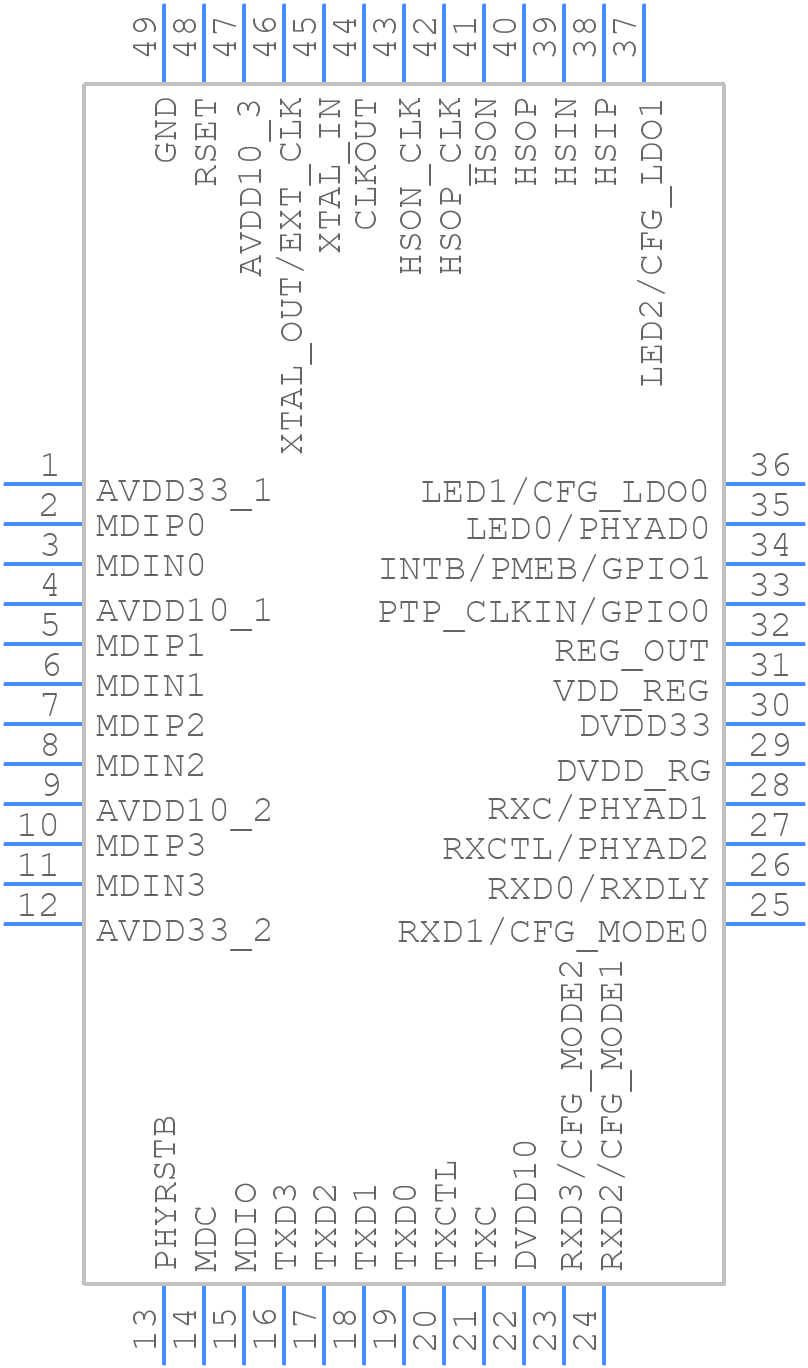

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RTL8211FSI-VS-CG - Realtek PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Pin QFN
click to zoom
3D Models
RTL8211FSI-VS-CG - Realtek  - 3D model - Quad Flat No-Lead - 48-Pin QFN
click to zoom

RTL8211FSI-VS-CG Details

  • Manufacturer Part Number:

    RTL8211FSI-VS-CG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Realtek Semiconductor

  • YTEOL:

    8.71

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

RTL8211FSI-VS-CG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Refer to the Realtek application note for more details.
  • Set the SPEED_SEL pin to '11' and the DUPLEX_SEL pin to '1' for 1Gbps full-duplex operation. Also, ensure the clock input is set to 125MHz.
  • The typical power consumption is around 350mW in 1Gbps mode and 200mW in 100Mbps mode. However, this can vary depending on the specific application and operating conditions.
  • Use a common-mode choke on the TX and RX differential pairs, and add a 10nF capacitor between the VCC and GND pins to reduce EMI emissions. Also, ensure proper shielding and grounding of the PCB.
  • The maximum cable length supported is up to 100 meters for Category 5e or higher cabling, assuming a proper termination and a good quality cable.
