ROHM recommends a thermal pad size of 2.5mm x 2.5mm with a minimum of 10 thermal vias (0.3mm diameter) to ensure efficient heat dissipation. Additionally, a solid copper plane on the bottom layer can help to further reduce thermal resistance.
To ensure SOA, monitor the device's voltage, current, and power dissipation. ROHM provides a SOA graph in the datasheet, which can be used to determine the safe operating region. Additionally, consider using overvoltage protection, undervoltage protection, and overcurrent protection circuits to prevent damage.
ROHM recommends storing the device in a dry, cool place with a temperature range of -40°C to 125°C and humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures during storage.
Yes, the RTQ025P02HZGTR is suitable for high-reliability applications. ROHM has qualified the device according to the AEC-Q101 standard, which ensures its reliability in automotive and other high-reliability applications.
To prevent ESD damage, handle the device with an anti-static wrist strap or mat, and ensure that the workspace is ESD-protected. Avoid touching the device's pins or exposing it to static electricity during handling or assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RTQ025P02HZGTR Overview

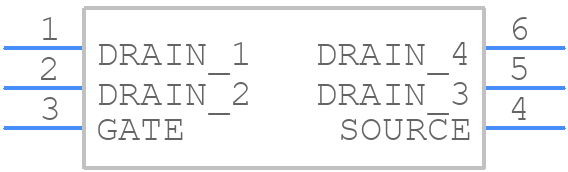

Use the download button to access the RTQ025P02HZGTR schematic symbol, PCB footprint, and 3D model.
